blow-off pump / air / pneumatic / industrial
PS series

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
blow-off pump blow-off pump - PS series
{{requestButtons}}

Characteristics

  • Media:

    air

  • Operation:

    pneumatic

  • Domain:

    industrial

  • Other characteristics:

    small, miniature, Venturi, with pressure controller, with filter, blow-off

  • Flow:

    Max.: 31 m³/h (1,094.7547 ft³/h)

    Min.: 2.7 m³/h (95.3496 ft³/h)

  • Pressure:

    Max.: 5 bar (72.519 psi)

    Min.: 1 bar (14.504 psi)

Description

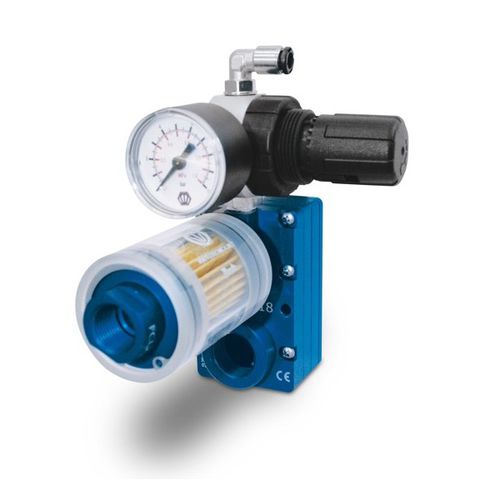

Small pneumatic blowing pumps PS

The assembly of a pressure adjuster equipped with pressure gauge and of an FCL filter on the suction inlet connection of a vacuum generator of the M .. SSX range has allowed creating these small pneumatic suction pumps. Their main features include reduced overall dimensions compared to their technical performance.
The pressure and flow rate can be adjusted according to the supply air pressure.
These pumps are powered with compressed air with a pressure ranging from 1 to 5 bar and can produce a maximum pressure of 0.7 bar and a blowing flow rate between 2.7 and 31 m3/h, measured at a normal atmospheric pressure of 1013 mbar.
Based on the Venturi principle, they do not develop heat.
The filter equipped with microporous cartridge located on the air inlet connection can keep the finest dust and impurities.
Thanks to their static operating principle, maintenance is reduced to only a simple regular cleaning of the filter.
