Hand brake controller

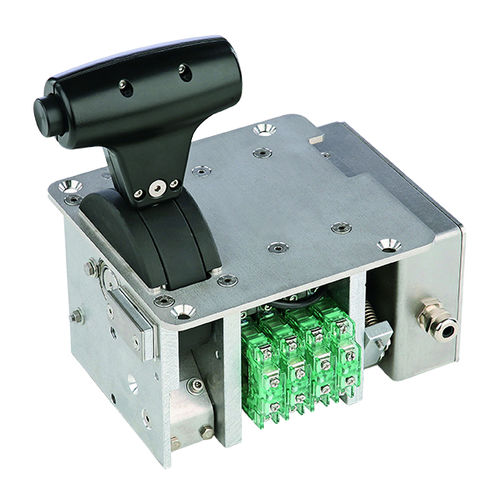

The Master Controller represented in Figure 1 is installed in a driver’s cab of a tram. It is designed for right hand manipulation and provides the man-machine-interface to control the traction, service braking and emergency braking operation of the vehicle. Furthermore the handle of the Master Controller includes a pushbutton used for automatic vigilance control (dead-man function). Technical data • Mechanical durability : 10 Mio. operating cycle • Weight : 5 kg • Storage temperature range : -25 to +70°C • Temperaturerange : -25 to +70°C • Protection class front side : IP40 • Protection class mounting side : IP00
