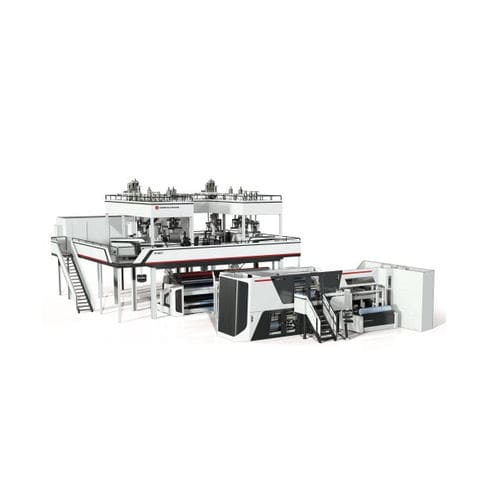

Cast-film extrusion line FILMEX II

for thermoplasticsfor stretch film

Overview The FILMEX II Stretch is a cast film production line engineered for high throughput and consistent stretch-film properties across the full web width. Designed for industrial palletizing and transport packaging, the line integrates the FILM PERFORMANCE MONITOR (FPM) for continuous quality recording and assigns a unique identification (data matrix / QR code) to each roll to support traceability and process optimization.

Your advantages

• CONSISTENT mechanical properties over time and full web width
• Best-in-class MD and TD thickness tolerances
• Outstanding reel geometries with constant film tension
• Low unwind forces for quieter high wrapping speeds and on-pallet cling
• CONSISTENT film performance during the wrapping process with fewer film breakages

Applications

• Super Power machine stretch
• Power machine stretch
• Hand stretch in both 2” and 3” formats
• Industrial cling film

Product information The FILMEX II platform is based on a modular cast-line concept and is driven by productivity, automation and consistency. The integrated FILM PERFORMANCE MONITOR (FPM) continuously records production and quality data for each roll to enable traceability and targeted process improvements when connected to laboratory or downstream equipment. The FILMATIC PS Dual Turret Winder, developed for stretch applications, produces high-quality rolls using two laterally offset winding units, a unique winding shaft bearing assembly, dedicated slitting tension zones and an innovative lay-on roll design to achieve low unwind forces and homogeneous air distribution. Identical web paths through both winding units ensure consistent roll quality.

Technical Data

• Film structure: 5 – 50+ nanolayers
• Net film width: 2 m – 4.5 m
• Thickness range: 6 – 35 µm
• Net output: up to 3000 kg/h
• Line speed: up to 800 m/min
• Integrated FILM PERFORMANCE MONITOR (FPM) and roll identification (data matrix / QR code)
