Multilayer extrusion line FILMEX II BARRIER

cast-filmfoodfor thermoplastics

Overview

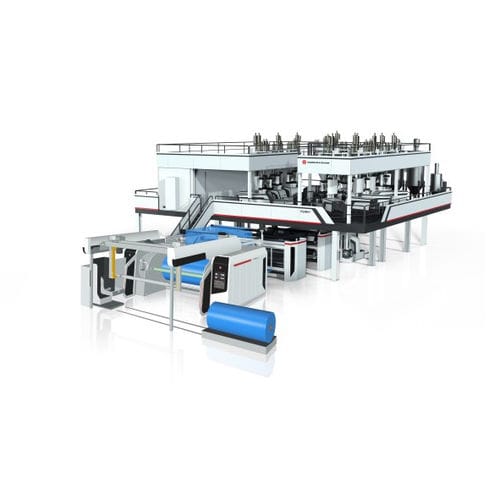

The FILMEX II Barrier is a cast film production line designed for high-performance barrier films used in protective and hygienic packaging.

Your Benefits

• High machine utilization via fully integrated automation and process control
• Exceptional layer uniformity for reliable sealing and deep-draw performance
• Best-in-class MD and TD thickness tolerances
• Superior reel quality enabling high utilization of slitted reels
• Consistent film quality for reliable performance in downstream packaging processes

Applications

• Meat and cheese packaging
• Bakery and pastry products
• Lid film and vacuum pouches
• Sealed-edge bags
• Packaging for medical and sensitive products

Product information
High-quality barrier films reduce food loss and protect sensitive goods during transport and storage. Demand for effective food protection is increasing alongside requirements for performance and sustainability of packaging solutions. FILMEX II Barrier addresses these needs by enabling hygienic, high-clarity barrier films with controlled layer structure and reproducible properties.

Excellent performance in the packaging process
FILMEX II Barrier is part of a new generation of Windmöller & Hölscher cast film lines. W&H extruders provide uniform melt quality and temperature distribution. Extruder output is regulated by precise gravimetric loss-in-weight dosing units to ensure consistent single-layer precision and superior MD/TD tolerances. The W&H smooth barrier screws process common cast resins without changeovers. A specially designed air knife provides uniform melt lay-on and high cooling efficiency on the chill roll for improved clarity and transparency.

Exceptional winding quality and fully integrated automation
The FILMATIC II TC turret cast winder produces high-concentricity single reels or multiple-ups with repeatable winding hardness for direct downstream processing without prior rewinding. FILMEX II Barrier includes fully integrated automation and a user-friendly PROCONTROL TS interface covering components from resin handling to the winder.

Technical data
Film structure: up to 13 layers
Net film width: up to 4 m
Thickness gauge: up to 400 µm
Net output: up to 2,000 kg/h
Line speed: up to 350 m/min

Characteristics / specifications

• Suitable for barrier-film production with emphasis on high clarity and uniform melt lay-on
• Universal W&H smooth barrier screws compatible with common cast resins
• Gravimetric loss-in-weight dosing for precise output control
• Special air knife and chill roll design for high cooling efficiency and transparency
• Equipped with FILMATIC II TC winder and PROCONTROL TS automation
• Supports up to 13 layers and maximum net width of 4 m
