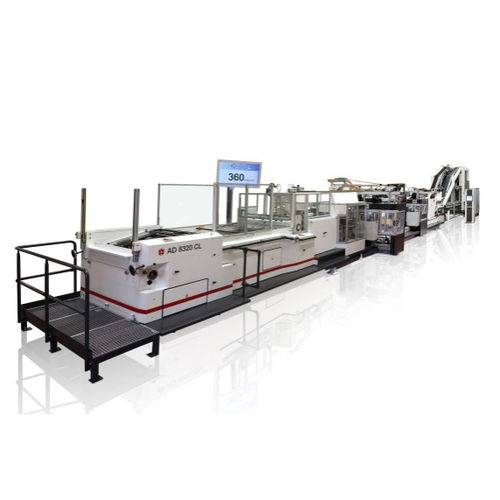

Paper bag making machine AD 8320

high-speedautomatic

Overview
AD 8320 is a highly efficient and flexible multi-purpose valve bottomer for small and medium-size sacks. It is the first bottomer worldwide capable of producing sacks with filling volumes down to 2 litres and is especially suited to short-run production with frequent format changeovers. In conjunction with a W&H tuber, the automated material flow systems TRANSYSTEMS, TRANSIFLEX or TRANS-TOWER and the ARCOMAT robot palletiser or, alternatively, the ROTASAC bag-on-a-roll winder, the AD 8320 forms an efficient in-line system for fully automatic production of multiwall paper sacks.

Your advantages

• up to 330 sacks/min
• CNC control
• reduced set-up times for frequent format changes
• flexibility in sack and valve designs

Applications

• paper valve sacks
• agriculture
• food
• industrial

Technical data
Sack width: 18 – 60 cm
Sack length: 25 – 118 cm
Bottom width: 7 – 18 cm
Bottom center distance: 18 – 100 cm
Sack volume: 2 – 100 litres
Product speed: max. 330 sacks/min

Features / Technical specifications

• Sack width: 18 – 60 cm
• Sack length: 25 – 118 cm
• Bottom width: 7 – 18 cm
• Bottom center distance: 18 – 100 cm
• Sack volume: 2 – 100 litres (capable of producing sacks down to 2 litres)
• Max. product speed: 330 sacks/min
• CNC control, reduced set-up times — suitable for short runs with frequent format changes
• Integration capability with W&H tuber, TRANSYSTEMS / TRANSIFLEX / TRANS-TOWER and palletising/rewinding solutions (ARCOMAT or ROTASAC)
