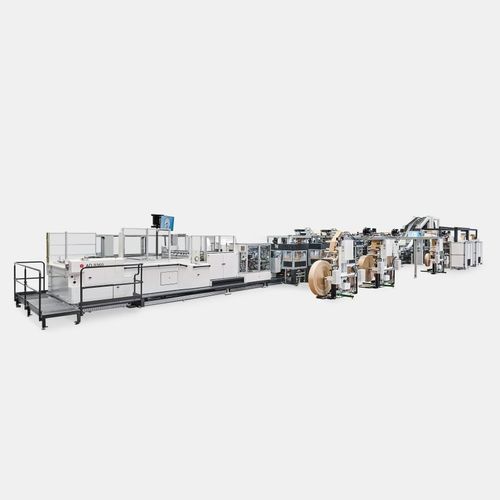

Paper bag making machine AD 8360

automatichigh-speed

Short description
The AD 8360 is a bottomer designed to form and finish the bottoms of industrial sacks across multiple applications.

Your advantages

• High degree of customization to run a wide range of sack types
• Fast job changes with automated tool settings and an integrated job management system
• Production speed up to 300 sacks/min
• Consistent sack bottom quality across all speed levels

Applications

• Paper valve sacks
• Cement
• Building materials
• Chemicals
• Food
• Feed
• Minerals

Product information
AD 8360 - The bottomer for all sacks
Versatility:

• The AD 8360 handles sacks for a wide range of industries, from cement and minerals to food and chemicals.

High Output:

• Automated tool settings and an integrated job management system enable fast and reproducible job changes.
• The paste pad drive system reduces set-up times and ensures precise paste patterns via automated machine adjustments.
• Maximum production speed: 300 sacks/min, achievable with various sack designs.

Sack Quality:

• The AD 8360 delivers consistent bottom quality at all operating speeds.
• The machine uses a proven paste pad application system for reliable paste distribution.

Technical Data
Sack width: 20 – 74 cm
Sack length: 29 – 131 cm
Bottom width: 7 – 23 cm
Product speed: max. 300 sacks/min

Specifications

• Model: AD 8360
• Sack width: 20 – 74 cm
• Sack length: 29 – 131 cm
• Bottom width: 7 – 23 cm
• Product speed: max. 300 sacks/min
• Applications: Paper valve sacks; Cement; Building materials; Chemicals; Food; Feed; Minerals
• Features: Automated tool settings and integrated job management system; paste pad drive system for reduced set-up times and precise paste patterns; proven paste pad application system
