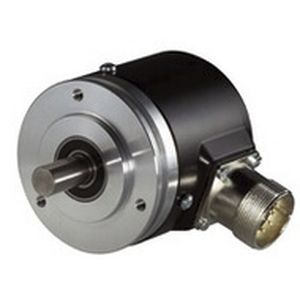

Incremental rotary encoder IS580opticalsolid-shaftsynchro-flange
Add to favorites
Compare this product
Characteristics
- Type
- incremental
- Technology
- optical
- Construction
- solid-shaft, synchro-flange
- Output signal
- RS-422, digital output
- Supply voltage
- 4.75-30 V DC
- Material
- aluminum, stainless steel
- Protection level
- standard, vibration-resistant, shock resistant, IP65
- Applications
- industrial, for OEM, for elevators, for handling systems
- Other characteristics
- high-resolution
- Incremental encoder résolution (pulses per revolution
Min.: 1 unit
Max.: 50,000 unit
- Housing diameter
58 mm
(2.28 in)- Shaft diameter
Min.: 6 mm
(0.24 in)Max.: 12 mm
(0.47 in)- Rotational speed
8,000 rpm
(50,265 rad.min-1)- Output frequency
300 kHz
- Process temperature
Min.: -20 °C
(-4 °F)Max.: 100 °C
(212 °F)
Description
Incremental encoders have a defined number of pulses per revolution (PPR = pulses per revolution). The output signals are the signals A and B offset by 90 degrees as well as the reference pulse Z. These signals, as well as the inverted signals, are available in different configurations. RS422 (TTL) or push-pull (HTL) are the most common variants as driver outputs. Incremental encoders are highly suitable for determining speed, angle or distance measurement.
Signals: A, /A, B, /B, Z, /Z
