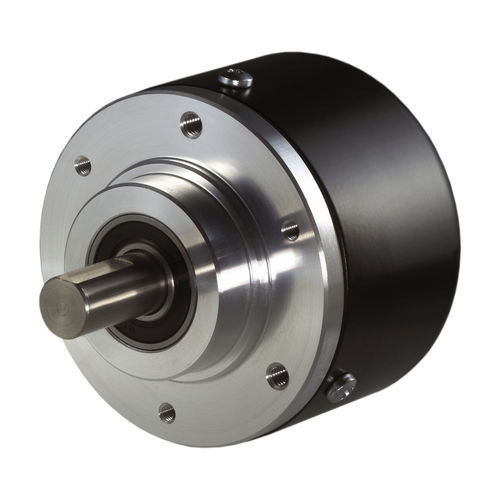

Incremental rotary encoder IS581solid-shaftsynchro-flangeRS-422
Add to favorites
Compare this product
Characteristics
- Type
- incremental
- Construction
- solid-shaft, synchro-flange
- Output signal
- RS-422
- Material
- aluminum, stainless steel
- Protection level
- IP65
- Applications
- industrial
- Incremental encoder résolution (pulses per revolution
Max.: 50,000 unit
Min.: 1 unit
- Shaft diameter
Max.: 12 mm
(0.47 in)Min.: 6 mm
(0.24 in)- Rotational speed
8,000 rpm
(50,265 rad.min-1)- Output frequency
300 kHz
- Process temperature
Max.: 100 °C
(212 °F)Min.: -20 °C
(-4 °F)
Description
Incremental encoders have a defined number of pulses per revolution (PPR). The output signals are the signals A and B shifted by 90 electrical degrees as well as the reference pulse Z. These signals as well as the inverted signals are available in different configurations. RS422 (TTL) or Push-Pull (HTL) are the most common variants as driver output. Incremental encoders are particularly suitable for determining speed, angle or distance measurements
Size: Ø 58 mm
Signals: A, /A, B, /B, Z, /Z
Supply voltage: 4.75-30 VDC
Catalogs
IS581
2 Pages
