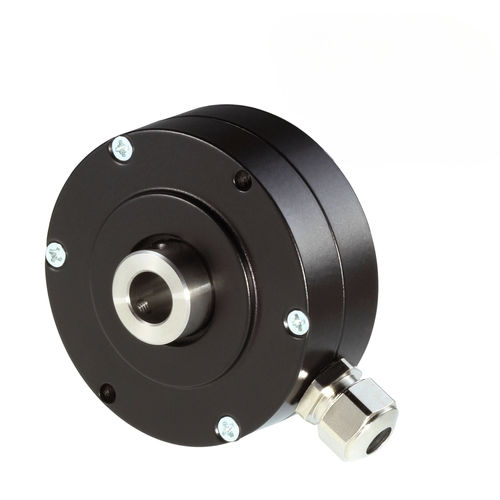

Incremental rotary encoder IH520
hollow-shaftflangedigital

Incremental rotary encoder - IH520 - W+S Meßsysteme GmbH - hollow-shaft / flange / digital
Incremental rotary encoder - IH520 - W+S Meßsysteme GmbH - hollow-shaft / flange / digital
Add to favorites
Compare this product
Go to the W+S Meßsysteme GmbH website for more information

Characteristics

Type
incremental
Construction
hollow-shaft, flange
Output signal
RS-422, digital
Supply voltage
DC
Material
aluminum, stainless steel
Protection level
IP65
Applications
industrial
Incremental encoder résolution (pulses per revolution

Min.: 1 unit

Max.: 3,600 unit

Housing diameter

52 mm
(2.05 in)

Shaft diameter

Min.: 6 mm
(0.24 in)

Max.: 10 mm
(0.39 in)

Rotational speed

6,000 rpm
(37,699 rad.min-1)

Output frequency

100 kHz

Process temperature

Min.: -20 °C
(-4 °F)

Max.: 70 °C
(158 °F)

Description

Incremental encoders have a defined number of pulses per revolution (PPR = pulses per revolution). The output signals are the signals A and B offset by 90 degrees as well as the reference pulse Z. These signals, as well as the inverted signals, are available in different configurations. RS422 (TTL) or push-pull (HTL) are the most common variants as driver outputs. Incremental encoders are highly suitable for determining speed, angle or distance measurement. Signals: A, /A, B, /B, Z, /Z
