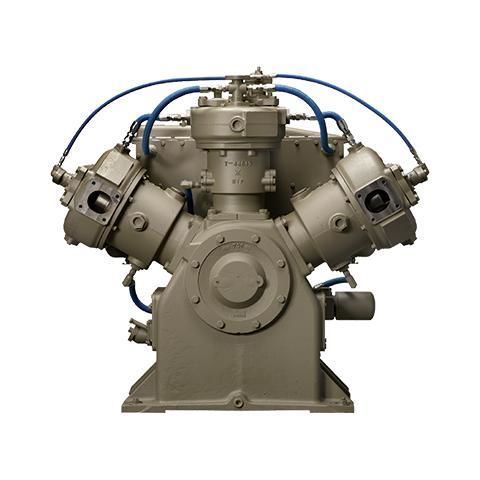

Piston compressor 3CW™

airstationaryoil-lubricated

Overview
3CW™ 3-cylinder water-cooled compressor designed for industrial compressed-air systems. Direct replacement for WLN/WBO compressors; available with multiple crankshaft centerline heights and as shaft or motor drive. Rated speed 1050 RPM, rated pressure 140 psi, displacement 296 CFM and power 68 HP.

Features & Benefits

• Directly interchangeable with WLN/WBO type compressors
• Various crankshaft centerline heights available
• Available as either shaft or motor drive
• Oil sight gage or dipstick available
• Double pass and plate style intercooler available
• Wabtec safety valve and breather
• Rated for continuous or start/stop operation
• Rated speed: 1050 RPM
• Rated pressure: 140 psi
• Displacement at rated speed: 296 CFM
• Power at rated speed and pressure: 68 HP

Technical specifications

• Type: 3-cylinder, water-cooled compressor
• Cylinders: 3
• Cooling: Water-cooled
• Drive options: Shaft drive or motor drive
• Crankshaft centerline heights: Multiple options available
• Oil level indication: Sight gage or dipstick
• Intercooler: Double pass and plate style options
• Safety: Wabtec safety valve and breather included
• Operation mode: Continuous or start/stop
• Rated speed: 1050 RPM
• Rated pressure: 140 psi
• Displacement: 296 CFM (at rated speed)
• Power: 68 HP (at rated speed and pressure)

Applications

• Locomotive and rail compressed-air systems
• Industrial compressed-air installations requiring WLN/WBO interchangeability
