Centrifugal compressor 2CD™airstationaryoil-lubricated
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Type
- air
- Portability
- stationary
- Lubrication
- oil-lubricated
- Applications
- for vehicles, for railway vehicles
- Other characteristics
- air-cooled, with integrated filtration
- Pressure
140 psi
Description
Overview

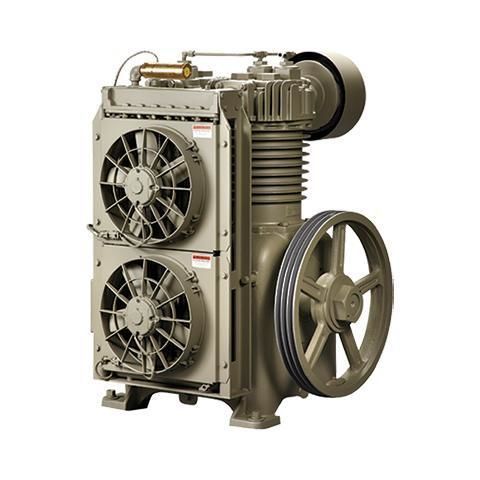

2-cylinder air compressor model 2CD™ designed for air generation and handling in locomotive and rail-vehicle applications. Suitable for continuous or start/stop duty.
Features & Benefits:
Technical specifications
2-cylinder air compressor model 2CD™ designed for air generation and handling in locomotive and rail-vehicle applications. Suitable for continuous or start/stop duty.
Features & Benefits:
- Temperature Management System (TMS) to control internal temperature
- Pulley, shaft, or motor drive options
- Integral cooling fans
- High-efficiency inlet filter
- Oil sight gage and oil pressure indicator
- Rated for continuous or start/stop operation
- Rated speed: 1000 RPM
- Rated pressure: 140 psi
- Displacement at rated speed: 153.5 CFM
- Power: 40 HP at rated speed and pressure
Technical specifications
- Configuration: 2-cylinder air compressor (model 2CD™)
- Temperature control: Temperature Management System (TMS)
- Drive options: pulley, shaft, or motor drive
- Cooling: integral cooling fans
- Filtration: high-efficiency inlet filter
- Lubrication indicators: oil sight gage and oil pressure indicator
- Operation rating: continuous or start/stop duty
- Rated speed: 1000 RPM
- Rated pressure: 140 psi
- Displacement (at rated speed): 153.5 CFM
- Rated power: 40 HP
