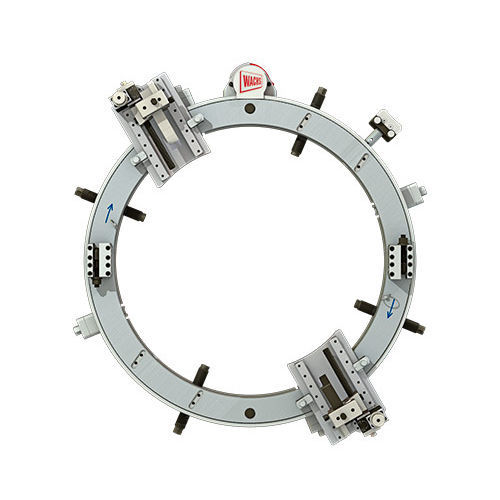

Steel pipe cutter DynaPrep MDSF 6066
orbital

steel pipe cutter
steel pipe cutter
steel pipe cutter
steel pipe cutter
Add to favorites
Compare this product


Characteristics

Tube material
steel
Specifications
orbital
Tube diameter

Max.: 1,650 mm
(65 in)

Min.: 1,500 mm
(59 in)

Description

The DynaPrep MDSF Split Frame 6066 60in-66in OD (DN1500 - 1650), is based on a rotating split ring style OD mounted machine tool (aka clamshells), designed to cold cut, bevel, single point and counterbore pipe and face flanges. Available kits include: DynaPrep MDSF 6066 rotating ring set Slides for specific kit Operating Hand Tools Operating Manual Storage Case Wachs DynaPrep MDSF Medium Diameter split frames are named for their ability to split in half for mounting to the outside of inline pipe. Each Wachs Split Frame uses a proven cold cutting machining process to cut and bevel pipe. It maintains the low clearance design of our previous LCSF series, but builds on that legacy with dozens of innovations and new features to make it more powerful, more versatile and faster to setup and operate. It redefines the standard in portable, cold cutting machine tools. Applications E.H. Wachs DynaPrep MDSF split frame clamshell machine tools are the foundation of a complete machining system that performs a wide range of field machining applications. DynaPrep pipe weld prep machine tools can perform precision inline pipe cutting, squaring of pipe ends, and destructive cutting of corroded or damaged pipe and pipelines. A pipe cutter by definition, the DynaPrep MDSF pipe cutting machine can simultaneously cut and bevel inline pipe, and when equipped for pipeline applications can quickly prep thin wall and out of round piping. For machining of heavy wall pipe or high alloy materials, additional modules are available that mount without modification to the standard ring set.

VIDEO
