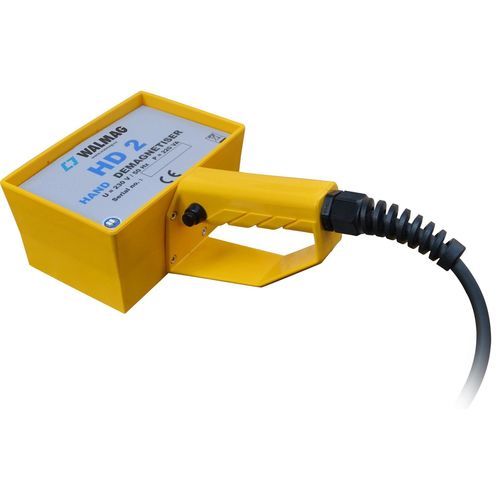

Hand-held demagnetizer HD2

for workpieces

You can use the HD handheld demagnetizer during mobile demagnetization of large or complex components where you cannot use table or tunnel demagnetizers, such as moulds, bearings, and various machine and mechanical parts, etc. It is an efficient tool where quick and mobile demagnetization is needed. Advantages: Compact dimensions and mobility High demagnetization power Lightweight plastic structure with a large handle Push button for simple operation Overheating protection Recommended duty cycle 50 % (max. 10 min.) 3m power supply cable with plug Detailed description: Some materials retain residual magnetism if exposed to magnetic fields – the amount depends on the workpiece size and the type of material. To remove this undesirable residual magnetism, the object must be exposed to an alternating magnetic field, which eliminates the magnetism to the lowest possible value. If there are large components or workpieces, it is possible to use the lightweight HD handheld demagnetizer, which is operated easily and is portable. We offer two models of the handheld demagnetizer depending on the thickness and dimensions of the workpiece to be demagnetized. HD1 is intended for smaller and thinner components, and HD2 is for larger and thicker workpieces or tools. Important parameters: Application: Demagnetization Technology: Electro Duty cycle: 50 % Operating time: 10 min. Depth of the magnetic field: Up to 30 mm Power: 230 VAC / 50-60 Hz, by request also 110 VAC
