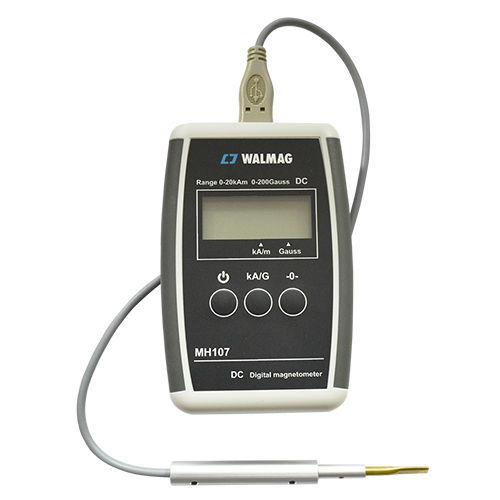

Portable gaussmeter MH-107

digital

The MH-107 is a portable digital device for detecting residual magnetism in workpieces and parts; its compact probe enables measurements in confined or hard-to-reach areas and battery operation allows extended use.

Advantages

• Selectable display units: Gauss (G) or millitesla (mT); optional kiloampere (kA) output.
• Compact probe for improved accessibility during measurement.
• Long battery operation: up to 130 hours.

Detailed description

• Application: Measurement of residual magnetism in workpieces previously exposed to magnetic fields (e.g., after magnetic clamping or other magnetic exposure).
• Intended to help detect residual magnetic fields that may affect subsequent processing (welding, turning) or product functionality.
• Large display with selectable output in Gauss or millitesla (kA output optional).

Use

• Measuring residual magnetism in components and assemblies.
• Measuring magnetic flux where magnetic chucking or magnetic fixtures are used.

Scope of supply

• Meter in a leather case.
• Manual.

Technical specifications

• Model: MH-107
• Measuring range: 0 - 199.9 G (≈ 0 - 19.9 mT)
• Displayed units: Gauss (G) or millitesla (mT); optional kiloampere (kA) output available.
• Power: battery operation
• Battery life: up to 130 hours
• Warranty: 2 years
• Dimensions (W × L × H): 79 × 119 × 24 mm
• Typical availability (approx.): 3 - 4 weeks
