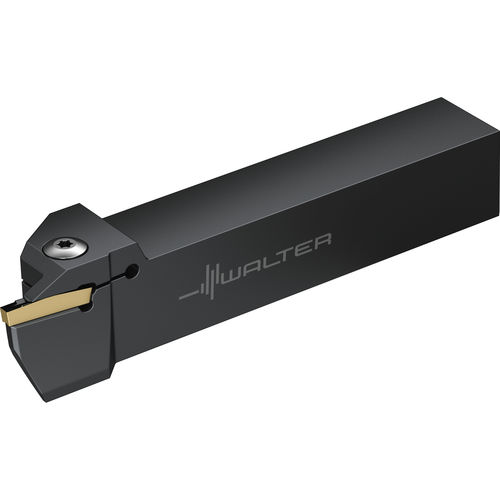

External grooving tool G1111.2525 series

faceaxialindexable insert

A whole new dimension in axial grooving is made possible by the extremely stable and reliable Walter GX1111 monoblock axial grooving tools. This guarantees you maximum productivity when combined with Tiger·tec® Silver cutting tool materials. Facts and advantages: axial (face) grooves from a diameter of 34 mm low tool head height for optimum chip removal available in two cutting depths of 12 mm and 25 mm for optimum stability cutting width from 3 mm the clamping screw is accessible from the top and the bottom, making the tool easy to handle even when inverted The Application Axial grooves from a diameter of 34 mm Cutting depths up to 25 mm Insert width from 3 mm The tool G1111 GX monoblock tool for axial grooving Clamping screw can be operated from above or below Two cutting depths available – for optimum tool stability Benefits for you Easier chip evacuation thanks to reduced tool head height [h] Easy handling in inverted use Optimum stability thanks to a selection of different cutting depths
