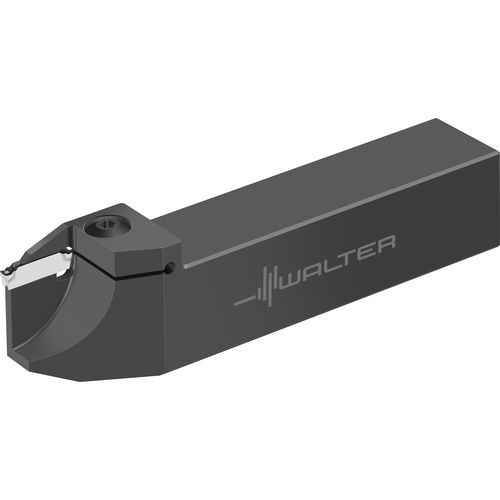

External parting and grooving tool G4011 series

indexable insert

For use on lathes of all types First choice for all grooving/recessing operations The tool Cutting depths 10 and 17 mm Shank dimensions: 16×16 to 25×25 mm Insert widths: 2–4 mm Clamping screw can be operated from above or below For double-edged DX18 grooving insert Benefits for you Easier chip evacuation thanks to reduced tool head height [h] Easy handling in inverted use Optimum stability thanks to a selection of different cutting depths Reliable thanks to unique positive engagement design (no incorrect fitting of the cutting insert, particularly for small insert widths)
