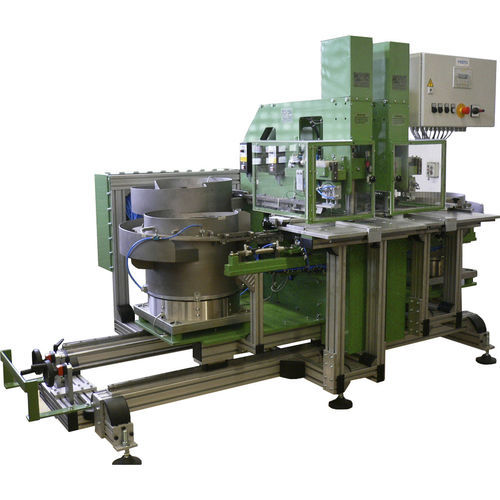

Pneumatic eyeleting machine 080_20

automaticautomatic feed

Electro-pneumatic double eyeletting machine of oval clips for automatic insertion into textile mats. The plastic upper and lower parts are each automatically fed and pressed in via a vibratory conveyor and conveyor belt. Both clips are inserted at the same time. The oiling units can be switched off or on individually via the control panel. The hole spacing can be continuously adjusted in the range of 150 - 500 mm. The textile mats can be applied via adjustable back and side stops. With protective housing, electric foot switch and piece counter. Technical data: Control cabinet with PLC-control and operating panel Sorting drum drive: Electric with minimum and maximum control Performance: 600 cycles/hour Drive: Electro-pneumatic Sorting drive: Vibratory conveyor Working height: Approx. 1000 mm Weight: Approx. 1000 kg Space required: 2500 x 2500 x 1750 mm Air pressure: Approx. 6-8 bar Projection: 150 mm free projection Hole spacing: 150 - 500 mm infinitely variable Application examples: Automotive industry, automotive supplier, automotive, textile industry, tarp and tent industry, etc.
