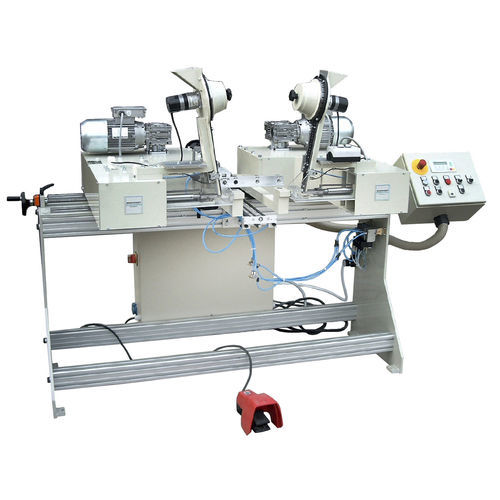

Electric riveting machine 080_30

self-piercingautomatic feedautomatic

Electric horizontal double riveting machine for plastic carrier belts on detergent containers for automatic insertion of self-piercing rivets. The rivets are automatically fed and pressed in via one driven sorting drum each on the left and right. Both rivets are inserted at the same time. The rivet units can be switched off or on individually via the operating panel. The pressure of the rivets is adjusted via an adjusting screw on the lower tool. The hole spacing can be continuously adjusted in the range of 100 - 500 mm. With protective housing, electric foot switch, piece counter and feed device. Technical data: Control cabinet with SPS-control and operating panel Sorting drum drive: Electrically with minimum & maximum control and rivet fall-through detection Performance: 120 cycles/minute Drive: Gear brake motor Sorting drive: Small gear motor Working height: Approx. 1000 mm Weight: Approx. 350 kg Space required: 1200 x 2000 x 1750 mm Air pressure: Approx. 6 bar Projection: 200 mm freely projecting Hole spacing: 100 - 500 mm infinitely variable Application examples: Automotive industry, luggage manufacturing, paper and printing industry, cardboard industry, container manufacturing, etc.
