- Walther Trowal GmbH&Co.KG
Centrifugal disc finishing machine TT...SM seriespolishingdeburringgrinding
Add to favorites
Compare this product
Characteristics
- Associated function
- polishing, deburring, grinding, finishing, sanding, multi-function
- Type
- centrifugal disc
- Applications
- industrial, for tools, for micro-finishing applications, checkbook
- Treated material
- for composites, for titanium alloys, for stainless steel
- Other characteristics
- automatic
- Power
4 kW, 11 kW
(5.44 hp, 14.96 hp)- Rotational speed
178 rpm, 213 rpm
(1,118.41 rad.min-1, 1,338.32 rad.min-1)
Description

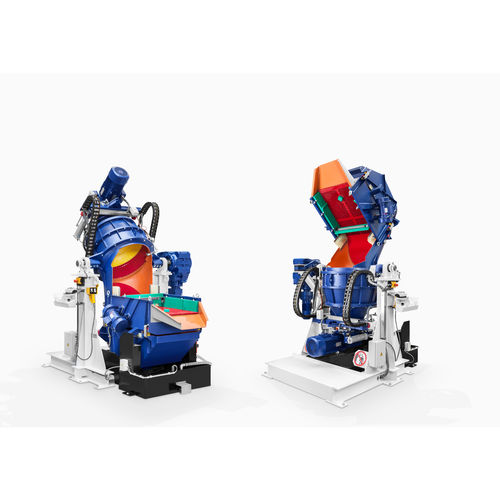

TT...SM CENTRIFUGAL DISC FINISHING UNITCOMPACT AND PIVOTING
Centrifugal disc finishing units from the TT...SM range have an attached screening machine and integrated hopper for abrasive media. After processing the workpieces, the entire unit pivots by 135° to separate the abrasive media and workpiece mass on the screening machine.
SUITABLE FOR HIGH-VALUE WORKPIECES
While the system pivots back into the working position, the abrasive media are conveyed back into the work bowl. This centrifugal disc finishing unit is particularly well suited to processing high-value workpieces, making it a popular choice in the aerospace industry for example.
THE BENEFITS AT A GLANCE
Compact design saves space
Cost effective
Suitable for processing limited quantities
VIDEO
