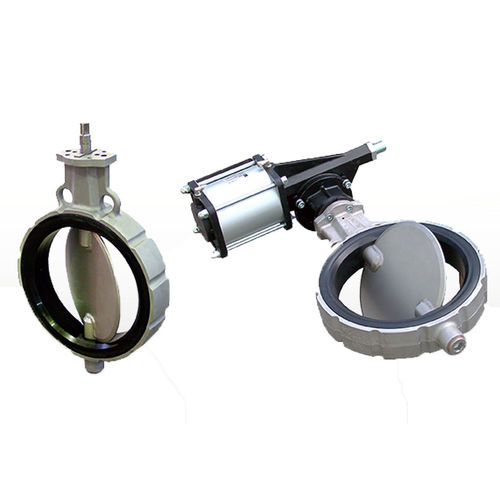

Butterfly valve VW
leverpneumaticcast

butterfly valve
butterfly valve
butterfly valve
butterfly valve
butterfly valve
Add to favorites
Compare this product

Characteristics

Type
butterfly
Operation
lever, pneumatic
Body
cast, stainless steel, carbon steel, aluminium
Applications
bulk, actuator
Other characteristics
ISO, DIN, universal
Temperature

Max.: 90 °C (194 °F)

Min.: -20 °C (-4 °F)

Pressure

2.5 bar (36.3 psi)

DN

Max.: 140 mm (5.512 in)

Min.: 100 mm (3.937 in)

Description

VW Butterfly Valves consist of a single block body manufactured from die-cast aluminium, a carbon steel or stainless steel disc including shafts, and an elastomer seal. An adjusting lever or pneumatic or electric actuator can be applied to the valve. The three WAM-type actuators are perfectly interchangeable. Interchangeability of the drive shaft (standard: DIN 5482; option: ISO 5211) and universal connection to different size flanges results in variety of configurations. Function VW Butterfly Valves are used in virtually all types of bulk solids processing plants where interception of gravity-fed or pneumatically conveyed dry powders or granules is required. This type of valve is particularly suitable for pneumatic conveying operations, in both dilute and dense phase applications, provided the operating pressure does not exceed 2.5 bar (36 PSI). Due to its particular design features and the materials used, the VW Butterfly Valve represents the ideal solution in many cases, both from a technical and an economic point of view.
