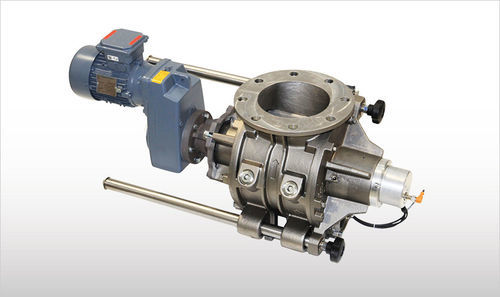

Pneumatic conveying rotary valve REC

for foodpowderfor dry bulk materials

Presentation
SlideOut rotary valves are continuous‑rotor dosing devices with two compartments filled simultaneously from a top inlet. Designed for precise metering of powders and granules while enabling simplified cleaning and maintenance.

Function
Two versions are available to suit different discharge methods: REC (drop‑through) for gravity discharge and RES (blow‑through) for pneumatic conveying integration.

REC (Drop‑through SlideOut rotary valve)
The REC unit has circular inlet and outlet ports. Material captured by the rotor is discharged by gravity through the bottom outlet into a container or onto a downstream conveying system for further processing.

RES (Blow‑through SlideOut rotary valve)
The RES unit features a circular inlet flange and bottom outlet pipe connections on both sides. Material is released in less than half a rotor revolution and is entrained into the air stream of a pneumatic conveying line.

Features

• Continuously revolving rotor with two compartments; standard rotor with integrated shaft
• Drive unit mounted on rotor shaft for compact layout
• Air‑purged shaft seal to reduce leakage and protect bearings
• Feed rates per revolution: 5 / 10 / 20 / 35 L/rev (0.17 / 0.35 / 0.70 / 1.2 cu ft/rev) for 2", 3", 4" and 5" conveying pipes
• Operating temperature range: -40 to 150 °C (-40 to 302 °F)
• Maximum working pressure: up to 1 bar (14 psi)
• Casing material: AISI 316 stainless steel
• Flanges: EN 1092-1 PN 10 (DIN 2576)
• Compact, robust construction with multiple finishing options
• Materials compliant with EC 1935/2004 where specified
• ATEX 20/22 certification available

Benefits

• Easy, safe and cost‑effective maintenance thanks to SlideOut extraction
• Durable construction with reduced footprint
• Adaptable to a range of powders and granules
• Gentle handling that preserves material physical properties

Additional product notes
SlideOut extraction simplifies inspection and service of the rotor and seal. Available finishing and certified‑material options make these valves suitable for food‑contact applications and for ATEX environments where required.

Technical specifications

• Models: REC (drop‑through) and RES (blow‑through)
• Rotor: two‑compartment continuous rotor, integrated shaft
• Drive: unit mounted on rotor shaft
• Shaft seal: air‑purged shaft seal
• Feed rates (nominal): 5 / 10 / 20 / 35 L/rev (0.17 / 0.35 / 0.70 / 1.2 cu ft/rev) for 2", 3", 4", 5" pipes
• Operating temperature: -40 to 150 °C (-40 to 302 °F)
• Working pressure: up to 1 bar (14 psi)
• Casing: AISI 316 stainless steel
• Flanges: EN 1092-1 PN 10 (DIN 2576)
• Certifications: EC 1935/2004 (food‑contact materials) where specified; ATEX 20/22
• Design: sturdy, compact structure; multiple finishing options
