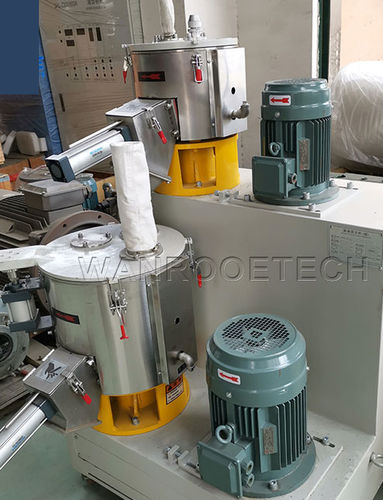

Dynamic mixer SRL-Z10/25A

batchfor solidslaboratory

The small lab used high speed PVC mixing machine is developed by introducing and absorbing advanced technology, utilizing the negative pressure mixing principle. All electrical instrumentation adopts imported brand-name electrical appliances and can use PLC program control or computer control. It features a high degree of automation, fast mixing speed (controllable by frequency conversion), and a precision stainless steel pressure-cast paddle, tested for static and dynamic balance. The cooling machine paddle uses an advanced spiral stirring structure, ensuring no dead angle in the container, fast cooling, clean discharge, and a mixing effect that meets advanced international standards.Product Details:Applicable for mixing, coloring, and drying various resins such as poly, PE, PP, PVC polypropylene, poly chloride, etc., and for drying and volatilization of engineering plastics like ABS, PC before forming and processing, as well as mixing phenolic resin.Can be manufactured in small size for laboratory tests.Combines heat mixing and cool mixing. Materials after heat mixing are automatically transferred to the cool mixer for cooling, which exhausts remaining gas and avoids agglomerates.Ideal equipment for plastic mixing.Features:1. The container lid and container use a concave and convex double channel sealing method, providing better sealing than traditional single channel flat seals.2. The spindle seal is a three-layer skeleton oil seal made of imported durable rubber with an oil injection device, ensuring good sealing and long service life.3. The discharge valve uses a plunger-type material door plug, fitting tightly with the inner wall for even mixing and reliable sealing. The temperature measuring point is in direct contact with the material for accurate measurement. The cold machine paddle uses a large inclination paddle for effective cooling.4. The container wall is equipped with a cooling sandwich with a spiral waterway for uniform and fast cooling. An inverted cone-shaped inner cooling jacket increases the cooling area and speed.5. The cold machine uses a direct deceleration device for stable operation. The lid is equipped with an exhaust device to remove gas generated during cooling, improving product quality.6. The inner wall is made of stainless steel plate for increased service life.7. The electrical control system features temperature and time double control, with components from renowned enterprises for reliable and sensitive performance.High Speed Plastic Mixer Unit Detail:I. High-speed mixerQty: 1Model: SHR-10AStirring tank: total capacity 10L, effective volume 10L, one time feeding ≤3Kg, disc bottom, inner barrel SUS304 (4mm, 250# polishing), outer barrel Q235-A (4mm), barrel top ring flange SUS304 (20mm, 250# polishing), bottom plate Q235-A (12mm), interlayer for heat transfer oil (≤0.1MPa), heater power 1.5kwStirring wing: SUS304, 250# polishing, rotation speed 30~1300rpm, three-section structure (upper, middle, lower)Bucket cover and lifting: stainless steel, 250# polished, openable lid, sealed with two white silicone rubber, feeding and exhaust portsBase: fixed agitation tank and motor, belt tensioning device, panel Q235-A (16mm), pot holder HT200, frame Q235-ADischarge port: stainless steel, 250# polished, discharge cylinder ensures valve alignment, observation and blow holes, unloading shell stainless steel, discharge valve SUS304Motor: YVP200L-4V1 inverter, 3Kw, 1480rpmShaft seal: oil seal + labyrinth seal (natural rubber), air blown from labyrinth seal to prevent product entrySafety: contact switch on cover ensures stirring only when closedII. Cooling mixerQty: 1Model: SHL-Z25AStirring tank: total capacity 25L, effective volume 18.75L, one feeding 7.5Kg, straight bottom, inner barrel SUS304 (4mm, 250# polishing), outer barrel Q235-A (4mm), barrel top ring flange SUS304 (16mm, 250# polished), interlayer cooled by water (9-15°C, ≤0.1MPa)Stirring wing: SUS304, 250# polishing, speed 30~1300rpm, three-section structureBucket cover and lifting: stainless steel, 250# polished, openable lid, sealed with two white silicone rubber, feeding and exhaust portsBase: fixed agitation tank and motor, belt tensioning device, panel Q235-A (16mm), pot holder HT200, frame Q235-ADischarge port: stainless steel, 250# polishing, discharge cylinder ensures valve alignment, observation and blow holes, unloading shell stainless steel, discharge valve SUS304Reducer, motor: KAF87-Y4-4P-14.45 spiral bevel gear reducer, power 4KwShaft seal: oil seal + labyrinth seal (natural rubber), air blown from labyrinth seal to prevent product entrySafety: contact switch on cover ensures stirring only when closedIII. Electrical control partMain electrical components: Siemens (Suzhou), temperature control table RKC, electric control cabinet is dustproofDischarge time or temperature controlInverter: Zhongchen brandHot mixing machine SHR-10A: temperature thermocouple with PTFE jacket for accuracyTechnical Specifications:ModelSRL-Z10/25AHigh Speed Mixer ModelSHR-10ATotal Capacity10LEffective Volume10LOne Time Feeding Amount≤3KgStirring Wing Rotation Speed30~1300rpmMotor Power3kwCooling Mixer ModelSHL-Z25ATotal Capacity25LEffective Volume18.75LOne Feeding Amount7.5KgMotor Power4kwStirring Wing Rotation Speed30~1300rpmCategory: Plastic Mixer
