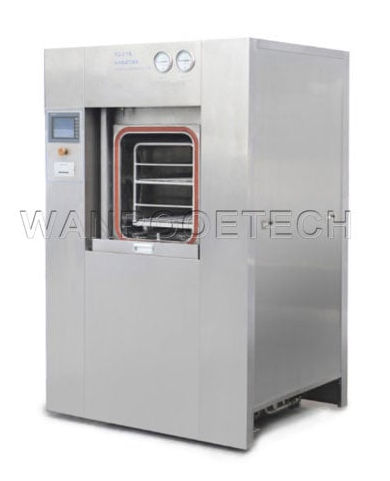

Laboratory autoclave YG

processvacuumhigh-capacity

Application: - Pulsating Vacuum Sterilizer Autoclave Treatment with features like PLC and HMI automatic program control, automatic temperature recording and printing, vacuum drying, etc. Suitable for hospitals, pharmaceutical factories, scientific research institutes, and other units to sterilize and dry clothing, dressings, metal instruments, culture medium, etc. Advantage: - Touch-Screen Operation - High Precision Pressure Controller - Printing Data And Curve - National Patent Gate Lock Structure Structure: - Vessels designed to China National Standard-GB150 (Steel Pressure Vessel) - National Patent door interlock device - National Patent sealing technology closed inflatable seal ring with compressed air - Control system integrated by PLC and HMI, advanced function for recording, printing, and storing - GMP validation port for insertion of 16 temperature sensors for validation - Independent temperature monitoring system - Steam condenser fitted in the exhaust/vacuum line to condense steam before entering the vacuum pump Open door style: - Lift gate type sterilizer: Sliding up-and-down - Pit type sterilizer: Door travels upwards a bit, then opens after turning the handle Working principle: - Hospital Clinic Autoclave Treatment Main Parameters and Utilities: - Design Pressure: 0.245Mpa - Vacuum: -0.095Mpa - Working Pressure: 0.22Mpa - Steam Pressure: 0.4-0.6Mpa - Design Temperature: 139°C - Tap Water Pressure: 0.2-0.3Mpa - Working Temperature: 134°C - Compressed Air Pressure: 0.6-0.8Mpa - Heat Equilibrium: ≤±1°C Technical Specifications (Models): - YG-0.1: Overall size 825*1080*1600 mm, Chamber size 630*400*480 mm, Steam consumption 15 kg/cycle, Power 1 Kw, Tap Water consumption 80 Kg/cycle, Net Weight 380 kg - YG-0.25: Overall size 895*1220*01720 mm, Chamber size 700*600*600 mm, Steam consumption 20 kg/cycle, Power 1.5 Kw, Tap Water consumption 150 Kg/cycle, Net Weight 650 kg - YG-0.36: Overall size 1195*1220*1720 mm, Chamber size 1000*600*600 mm, Steam consumption 25 kg/cycle, Power 1.5 Kw, Tap Water consumption 150 Kg/cycle, Net Weight 760 kg - YG-0.6: Overall size 1245*1300*1880 mm, Chamber size 1050*680*850 mm, Steam consumption 30 kg/cycle, Power 2 Kw, Tap Water consumption 200 Kg/cycle, Net Weight 1100 kg - YG-0.8: Overall size 1595*1300*1880 mm, Chamber size 1400*680*850 mm, Steam consumption 35 kg/cycle, Power 3 Kw, Tap Water consumption 250 Kg/cycle, Net Weight 1300 kg - YG-1.2: Overall size 1695*1370*1960 mm, Chamber size 1500*750*1100 mm, Steam consumption 40 kg/cycle, Power 3 Kw, Tap Water consumption 300 Kg/cycle, Net Weight 1900 kg - YG-2.5: Overall size 3195*1370*1960 mm, Chamber size 3000*750*1100 mm, Steam consumption 75 kg/cycle, Power 4.5 Kw, Tap Water consumption 450 Kg/cycle, Net Weight 2800 kg - YG-5: Overall size 3636*1800*2200 mm, Chamber size 3400*1000*1500 mm, Steam consumption 150 kg/cycle, Power 7.5 Kw, Tap Water consumption 600 Kg/cycle, Net Weight 4500 kg
