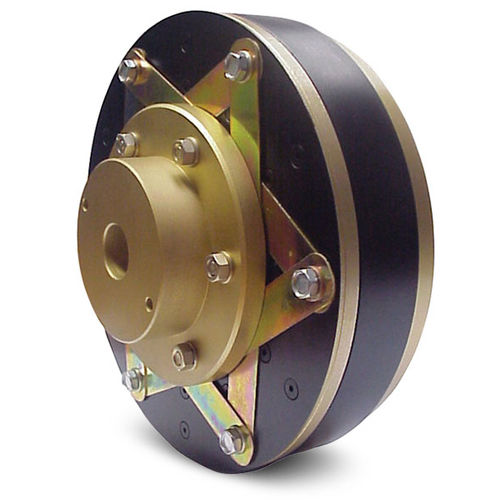

Friction brake E210 VAR 00discelectromagnetic
Add to favorites
Compare this product
Characteristics
- Type
- friction, disc
- Operation
- electromagnetic
- Torque
Min.: 50 Nm
(36.878107 ft.lb)Max.: 3,200 Nm
(2,360.198878 ft.lb)- Rotational speed
Min.: 1,500 rpm
(9,424.778 rad.min-1)Max.: 4,150 rpm
(26,075.219 rad.min-1)- Power
Min.: 52 W
Max.: 187 W
Description
is a bearing mounted clutch coupling.
Features
Characteristics
Electrically operated 24 or 103,5 VDC depending size
Single friction face
Activated by power on
Utilisation
Coupling of two shafts in line
Particularities
No Backlash
For dry use
No residual torque in disengaged position
Fixed inductor mounted on ball bearings
Adjustments
Airgap “P” should be adjusted at installation
Does not require wear compensation
Mounting Precautions
The anti-rotation device of the electromagnet shall be inserted in anti rotation slot, with a side play of 0,5 mm and a 1 mm play to the bottom. This avoids a normal stress on the ball-bearings.
We strongly recommend to mount a damping elastic slot in the anti-rotation device in case of vibrations
Device intended for horizontal use; for vertical use, please consult the factory
