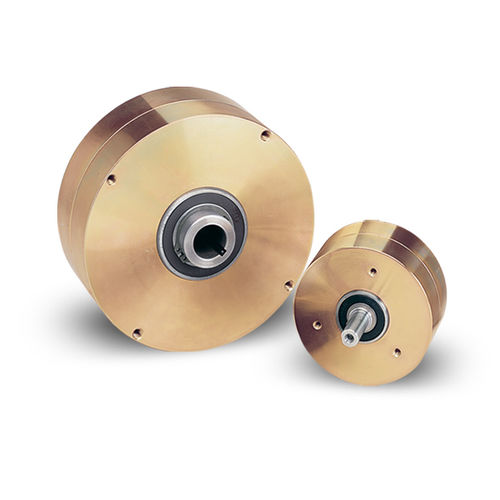

Friction clutch and brake MPB/MPC

electromagneticmagneticfor tension control

Self-contained magnetic particle clutches and brakes for a wide range of unwind/ rewind applications offer smooth operation at very low speed and electronic control compatibility. Shaft or flange mounting Fan cooled in largest sizes. Accurate torque control with instantaneous engagement! Warner Electric Precision Tork magnetic particle clutches and brakes are unique because of the wide operating torque range available. Torque to current is almost linear and can be controlled very accurately. The unique features of the magnetic particle clutches and brakes make them ideal for tension control, load simulation, cycling/indexing, and soft starts and stops. Features Torque independent of slip speed - Torque is transmitted through magnetic particle chains which are formed by an electromagnetic field. The torque is independent of slip speed, depending only on circuit current, and is infinitely variable from 0 (disengaged) to rated torque. Precise engagement - Precision Tork magnetic particle clutches and brakes engage to transmit torque with speed and precision. Response of the particles to the field is virtually instantaneous, providing perfectly controlled, jerk-free engagement. Customer specified engagement - Engagement time may be very gradual or extremely fast. The frequency and torque of the engagement/disengagement sequence is limited only by the capabilities of the control circuitry.
