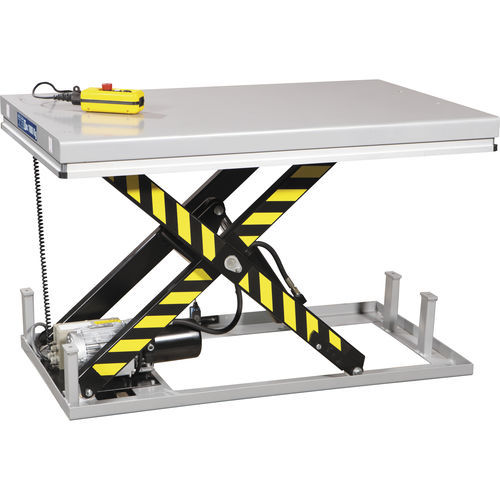

Scissor lift table HWelectro-hydarulicstationaryloading
Add to favorites
Compare this product
Characteristics
- Technology
- scissor
- Operation
- electro-hydarulic
- Type
- stationary
- Application
- loading
- Other characteristics
- for order picking
- Capacity
Max.: 4,000 kg
(8,818.5 lb)Min.: 500 kg
(1,102.3 lb)- Lowered height
Max.: 300 mm
(12 in)Min.: 200 mm
(8 in)- Lifting height
Max.: 1,400 mm
(55 in)Min.: 1,000 mm
(39 in)- Stroke
800 mm, 1,100 mm
(31.5 in, 43.31 in)- Tray width
Max.: 1,200 mm
(47.24 in)Min.: 800 mm
(31.5 in)- Lift time
Max.: 35 s
Min.: 15 s
- Weight
Max.: 505 kg
(1,113.33 lb)Min.: 193 kg
(425.49 lb)
Description
LIFTING TABLE | 500-4000 kg
Maintenance-free bushes. Large safety distance between scissors to avoid injuries. Lifting cylinder with internal drainage. Safety valve to ensure safety in case of hose breakage.
Movable limit switch for adjusting the lifting stop. 4 end stops, incl. 4 lugs, e.g. when lifting the lift table into a pit.
Low-noise electro-hydraulic unit with built-in overload valve.
Cable for 380 V/16 Ah three-phase. Approved according to EN157.
