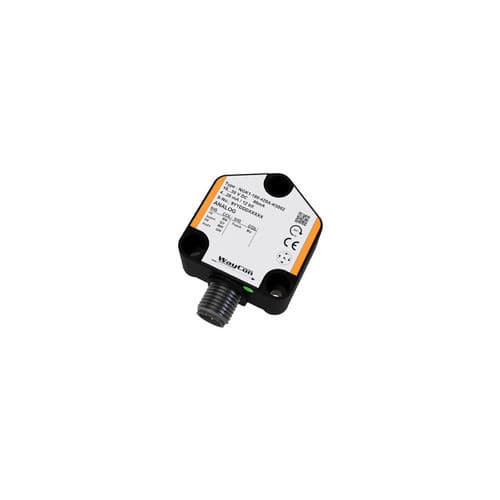

2-axis inclinometer NGK series1-axis4-20 mA0-10 V
Add to favorites
Compare this product
Characteristics
- Number of axes
- 1-axis, 2-axis
- Output
- 4-20 mA, 0-10 V, 0-5 V
- Other characteristics
- IP68, IP69K
- Inclination
Max.: 360 °
Min.: 0 °
- Resolution
0.1 °
Description
Inclination sensors
Inclination sensors are designed for precise measurement of tilt angles and for determining the orientation of objects relative to the horizontal. They detect position changes of machines, equipment or moving components and deliver reliable measurements for monitoring and controlling technical processes. Their robustness and measurement accuracy make them suitable for applications in mobile hydraulics, mechanical engineering and industrial automation.
Inclination sensor NGK
Measurement range: up to 360°
Axis: 1 or 2
Linearity: ±0.1°
Output: 0.5...4.5 V / 0.1...4.9 V / 0...5 V / 0...10 V / 4...20 mA
Protection class: IP68/IP69K
Temperature range: -40...+85 °C
Downloads: Data sheet NGK, Installation guide NGK
Characteristics / technical specifications
Inclination sensors are designed for precise measurement of tilt angles and for determining the orientation of objects relative to the horizontal. They detect position changes of machines, equipment or moving components and deliver reliable measurements for monitoring and controlling technical processes. Their robustness and measurement accuracy make them suitable for applications in mobile hydraulics, mechanical engineering and industrial automation.
Inclination sensor NGK
Measurement range: up to 360°
Axis: 1 or 2
Linearity: ±0.1°
Output: 0.5...4.5 V / 0.1...4.9 V / 0...5 V / 0...10 V / 4...20 mA
Protection class: IP68/IP69K
Temperature range: -40...+85 °C
Downloads: Data sheet NGK, Installation guide NGK
Characteristics / technical specifications
- Measurement range: up to 360°
- Axis: 1 or 2
- Linearity: ±0.1°
- Output options: 0.5...4.5 V; 0.1...4.9 V; 0...5 V; 0...10 V; 4...20 mA
- Protection class: IP68 / IP69K
- Operating temperature: -40 to +85 °C
