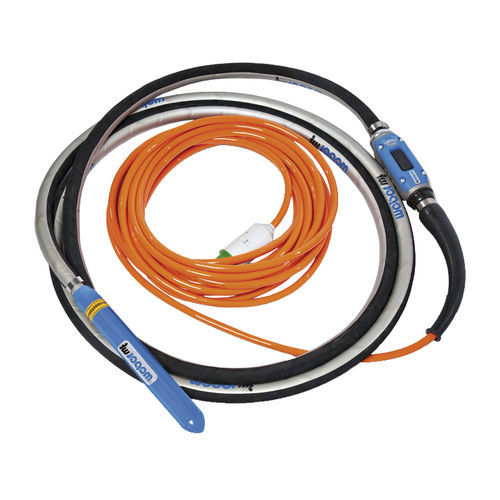

Electric concrete internal vibrator IV series

The IV high-frequency internal vibrators feature an integral motor for professional concrete compaction. The internal vibrators convince through their powerful motors, allowing concrete compaction at large construction sites, as well. Additional advantages of the IV internal vibrators: Long service life and minor wear thanks to completely hardened poker tubes. High operational reliability as thermo sensors protect the windings against overheating. In addition, the ON/OFF switch is located in a rugged, waterproof cast housing. Cost-effective, because the internal vibrators are easy to disassemble for service work. In addition to our standard range for conventional concrete compaction, you will find specific solutions, e.g. for the compaction of concrete floors or low concrete areas. For these applications, we offer from IV 40 D to IV 58 D with pistol grip, short 0.8 m protective hose and 15 m power cord. The IV 31 with its cylinder diameter of only 31 mm is ideally suited for concrete compaction within narrow formwork. As with all other internal vibrators, this unit comes with a 5 m protective hose and a 15 m power cord as standard equipment. The IV internal vibrators are connected to Weber's rotating frequency and voltage converters (output 200 Hz / 48 V) or electronic frequency and voltage converters (output 200 Hz and 48 or 250 V).
