Rotary feeder ZEB series

vibratingfor bulk materialsrotary

Overview

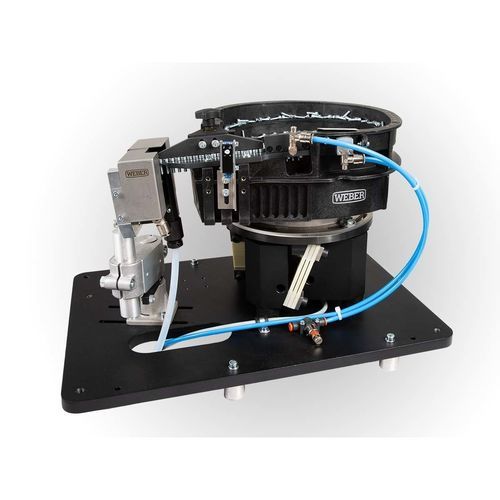

The bowl feeder ZEB is designed for sorting, buffering and feeding small parts and fasteners such as screws, nuts, pins, washers, caps and special elements. Abrasion-resistant surfaces and a special coating protect the parts and reduce wear. A noise-insulated vibration mechanism provides propulsion; noise can be further reduced with an optional sound enclosure (SDH).

Optional equipment

• Level sensors
• Presence control
• Position indicators
• Belt bunker (refill hopper) to extend refill intervals

Features

• Abrasion-resistant material and protective coating
• Suitable for long screws, thin washers and head-heavy screws
• Universal application for various fasteners
• Vibration technology for sorting and conveying
• Noise-insulated vibration mechanism; optional sound enclosure (SDH)
• High output volume (cycle times down to approx. 0.8 s)

Technical data ZEB (summary)
Series | ZEB120 | ZEB240 | ZEB360
A Width [mm] | 480 | 480 | 640
497 with SDH* | 497 with SDH* | 650 with SDH*
B Depth [mm] | 340 | 340 | 536
353 with SDH* | 353 with SDH* | 547 with SDH*
C Height [mm] | 456 | 456 | 602
463 with SDH* | 463 with SDH* | 607 with SDH*
Weight [kg] | 25 with SDH* | 54 with SDH* | 80 with SDH*
Fill volume [L] | 0.3 | 1.2 | 3.8
Fill weight [kg] | 1.2 | 6.0 | 17.0
D Height to hopper [mm] | 290 | 300 | 360
E Height to FSK** [mm] | 305 | 382 | 440

Screws
Head-Ø [mm] | 2.0 – 4.0 | 2.5 – 12.5 | 6.0 – 24.0
Thread | M1 – M2 | M2 – M6 | M4 – M14
Total length [mm] | ≤ 22 | ≤ 48 | ≤ 73

Nuts
Across corner [mm] | — | ≤ 12.5 | ≤ 20
Thread | — | ≤ M8 | ≤ M10
Height [mm] | — | ≤ 9.5 | ≤ 9.5

Pin
Pin-Ø [mm] | — | ≤ 8 | ≤ 16
Length [mm] | — | ≤ 50 | ≤ 80

*SDH = sound enclosure cover, **FSK = feeder level control

Characteristics / technical specifications

• Model series: ZEB (ZEB120, ZEB240, ZEB360)
• Suitable for screws, nuts, pins, washers, caps and special elements
• Abrasion-resistant surfaces and special coating for reduced wear and noise
• Vibration propulsion with noise-insulated mechanism; optional sound enclosure (SDH)
• High output: cycle times down to approx. 0.8 s
• Fill volumes: 0.3 L / 1.2 L / 3.8 L for ZEB120 / ZEB240 / ZEB360
• Fill weights: 1.2 kg / 6.0 kg / 17.0 kg for ZEB120 / ZEB240 / ZEB360
• Optional accessories: level sensors, presence control, position indicators, belt bunker (refill hopper)
