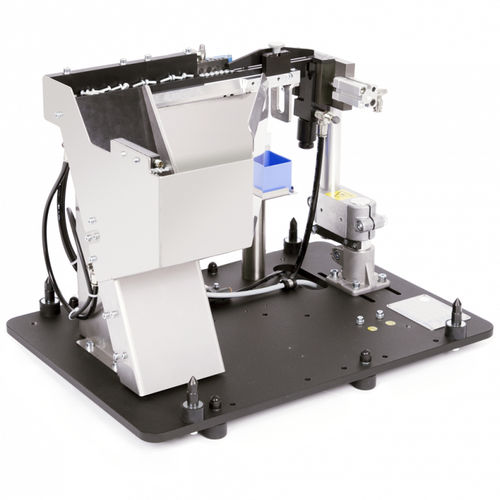

Nut feeding unit ZEL series

stepscrewfor screws

Overview
The ZEL step feeder gently feeds and separates screws, nuts and pins with minimal abrasion. Cycle times down to 0.8 s enable high output while a low‑vibration outlet rail reduces part movement and particle generation, making the system suitable for coated and sensitive parts. Integrated sensors and noise‑reduction measures increase process reliability and operator protection.

Design and materials
The feeder hopper is manufactured from stainless steel. The integrated slider is available in hardened tool steel or plastic to minimize wear and contamination. An optional belt bunker (refill hopper) can be fitted to extend autonomous operation. Components are selected to support technical cleanliness requirements.

Features

• High output volume (cycle times down to 0.8 s)
• Low abrasion to preserve technical cleanliness
• Suitable for coated and sensitive parts
• Low particulate generation
• Low‑vibration exit track to reduce noise and part movement
• Configurable for Pick & Place with escapement TPP
• Integrated sensors for high process reliability

Functional components (hotspots highlighted)

• Inlet control for separation
• Escapement unit
• Fastener storage hopper
• Lifting cylinder for gentle conveying
• Optional BR‑S dirt brake for enhanced cleanliness

Technical data (overview)
Series | ZEL240 | ZEL360 | ZEL480
A Width [mm] | 480 | 640 | 1296
B Depth [mm] | 340 | 536 | 1000
C Height [mm] | 456 | 602 | 1141
Weight [kg] | approx. 60 | approx. 85 | approx. 350
Fill volume [ltr] | 1.2 | 3.0 | 15.0
Fill weight [kg] | 6.0 | 14.0 | approx. 100.0
D Height to hopper [mm] | 397 | 437 | 1033

Screws
Head‑Ø [mm] | 2.5–12.5 | 6.0–20.0 | 12.0–32.0
Thread | M2–M6 | M4–M12 | M6–M16
Total length [mm] | ≤ 42 | ≤ 73 | ≤ 160

Nuts
Across corner [mm] | ≤ 12.5 | ≤ 20 | ≤ 32.0
Thread | ≤ M8 | ≤ M10 | ≤ M16
Height [mm] | ≤ 9.5 | ≤ 9.5 | ≤ 20.0

Pins
Pin‑Ø [mm] | ≤ 8 | ≤ 14 | ≤ 24.0
Length [mm] | ≤ 48 | ≤ 73 | ≤ 160

Notes
*SDH = sound enclosure cover. Dimensions in mm; technical changes reserved or by agreement. Custom solutions available for particularly large fasteners.

Technical specifications

• Series: ZEL240, ZEL360, ZEL480
• Typical cycle time: down to 0.8 s
• Main materials: stainless steel hopper; slider in hardened tool steel or plastic
• Low‑vibration exit track for coated and sensitive parts
• Integrated sensors for process monitoring
• Optional sound enclosure cover (SDH) to reduce noise emissions
• Optional belt bunker / refill hopper for increased autonomy
• Pick & Place configurable with escapement TPP
• Designed to minimize abrasion and particulate generation for technical cleanliness
