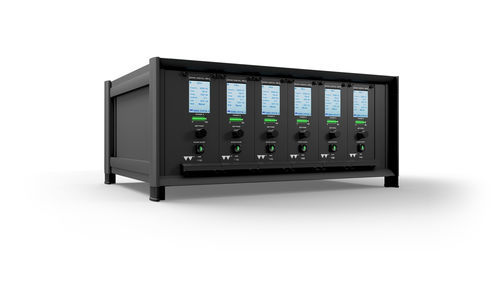

Ultrasonic welding generator SONIC DIGITAL MG 4

The Sonic Digital MG 4 is even easier to control. You can adjust all settings directly on the device and view current system processes and messages on the display. Perfectly suited for applications requiring frequencies and power between 400 and 2,000 W, this generator is the ideal solution for use with other devices. POWER CONNECTION Supply - TTE28 housing for up to 2 modules,230 V: Loose wires or country-specific plug. Germany: Safety contact plug(Schuko) - TTE84 housing for up to 6 modules,400 V: IEC 60309 CeKon Device - Hard wired TECHNOLOGIES, FUNCTIONS, BENEFITS - Sonic Digital technology in modular construction - Operation on device and display - SonoScan - Digital creation and control of frequency with 32-bit micro controller - Electronic amplitude control from 50 – 100 % - Programmable operating parameters for up to 99 individual welding processes - Monitoring of parameter and process count - Fan control - Temperature management - Short circuit, idle and overload protection - 15-pole I/O interface (TTE28 up to 2 modules), 2 x 15-pole I/O interface (TTE84 for up to 6 modules) - Optional RS-485 interface
