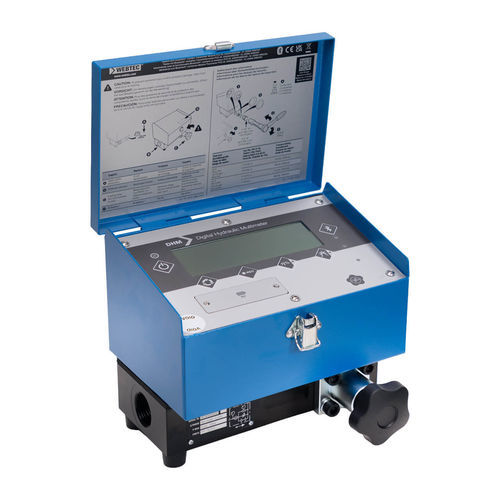

Digital multimeter DHM seriesportableIP65calibration
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Form
- portable
- Protection level
- IP65
- Applications
- calibration
- Process temperature
Max.: 50 °C
(122 °F)Min.: -10 °C
(14 °F)
Description
Description
The DHM accurately measures flow, pressure and temperature and presents results in numeric and graphical formats. It is designed to test the performance of hydraulic pumps, motors, valves and hydrostatic transmissions, and to pre-set flow and pressure before fitting attachments on machines.
Main features
Advanced functions include display of power and volumetric efficiency to speed up fault diagnosis. The TrueFlow® direction indicator clearly shows flow direction. Fast capture of pressure peaks records very short spikes. Quick bar-graph views highlight fluctuations. Remote display via a mobile phone allows viewing DHM measurements while working near equipment.
App and data management
The QuickCert®+ app (iPhone® and Android™ compatible) retrieves recorded data and generates actionable reports. The multilingual app simplifies report creation and export of records for quality and maintenance documentation.
Safety, sealing and calibration
All DHM units include the Webtec charge valve with integrated Interpass® safety protection (internal bypass on overpressure). Devices are sealed against dust and water jets, supplied with a traceable calibration certificate and covered by a standard five-year warranty.
Key functional features
Technical specifications
The DHM accurately measures flow, pressure and temperature and presents results in numeric and graphical formats. It is designed to test the performance of hydraulic pumps, motors, valves and hydrostatic transmissions, and to pre-set flow and pressure before fitting attachments on machines.
Main features
Advanced functions include display of power and volumetric efficiency to speed up fault diagnosis. The TrueFlow® direction indicator clearly shows flow direction. Fast capture of pressure peaks records very short spikes. Quick bar-graph views highlight fluctuations. Remote display via a mobile phone allows viewing DHM measurements while working near equipment.
App and data management
The QuickCert®+ app (iPhone® and Android™ compatible) retrieves recorded data and generates actionable reports. The multilingual app simplifies report creation and export of records for quality and maintenance documentation.
Safety, sealing and calibration
All DHM units include the Webtec charge valve with integrated Interpass® safety protection (internal bypass on overpressure). Devices are sealed against dust and water jets, supplied with a traceable calibration certificate and covered by a standard five-year warranty.
Key functional features
- Measurements: flow, pressure, temperature (numeric and graphical display)
- Display of power and volumetric efficiency
- TrueFlow® direction indicator
- Fast capture of pressure peaks
- Bar-graph display for quick fluctuation detection
- Remote display via QuickCert®+ mobile app
- Integrated charge valve with Interpass® protection
- Dust- and jet-water-resistant construction
- Traceable calibration certificate included
- Standard warranty: 5 years
Technical specifications
- Maximum rated pressure: up to 480 bar (7000 psi)
- Maximum rated flow: up to 800 L/min (210 US gpm)
- Operating ambient temperature: -10 to 50 °C (14 to 122 °F)
- Compatible fluids: mineral oils to ISO 11158 (see technical recommendations for other fluids)
- Connections: BSPP, SAE
- Materials: painted mild steel housing; high-strength aluminium flow block; FKM seals
