liquid flow meter / portable / in-line / for hydraulic installations
RFIK Series

{{requestButtons}}

Characteristics

  • Fluid:

    for liquids

  • Other characteristics:

    portable, in-line

  • Applications:

    for hydraulic installations

  • Process pressure:

    Min.: 0 Pa (0 psi)

    Max.: 42,000,000 Pa (6,091.58 psi)

  • Process temperature:

    Min.: 0 °C (32 °F)

    Max.: 110 °C (230 °F)

  • Volumetric flow rate:

    Min.: 0 m³/h (0 ft³/h)

    Max.: 12 m³/h (52.8 ft³/h)

Description

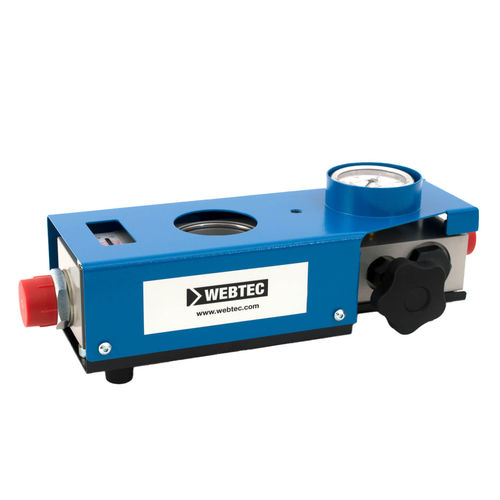

The Portable Flow Meter Series RFIK enables reverse flow while measuring flow, pressure and temperature. It is enclosed in a ergonomic rugged case. It flows up to 200 lpm or 54 US gpm and the pressure goes up to 420 bar or 6000 PSI. The temperature is up to 110°C or 230°F and it does not require battery to operate it. Lastly, it has bi-directional loading valve that comes with a INTERPASS(TM) burst disc security that is fitted as standard and it is excellent for hydraulic tester for small portable machinery.
