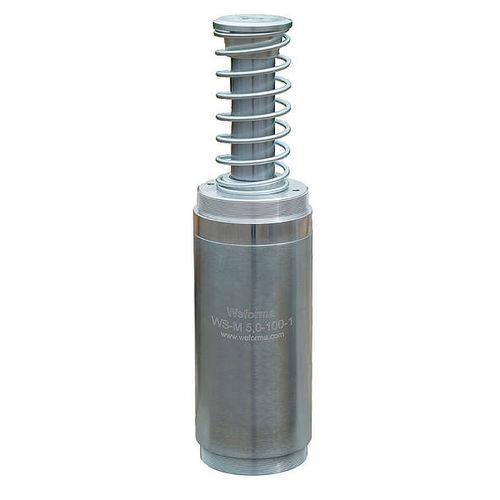

Shock absorber Mega-LineⓇ 5.0, 7.5, 10.0hydraulicindustrialhardened steel
Add to favorites
Compare this product
Characteristics
- Function
- shock
- Technology
- hydraulic
- Applications
- industrial
- Material
- hardened steel, chrome steel
- Other characteristics
- piston, self-compensating, adjustable, high energy absorption
- Load capacity
Max.: 900 N
Min.: 100 N
- Stroke
Max.: 400 mm
(15.75 in)Min.: 50 mm
(1.97 in)- Diameter
110 mm, 130 mm, 200 mm
(4.3 in, 5.1 in, 7.9 in)- Height
Max.: 1,300 mm
(51.2 in)Min.: 313 mm
(12.3 in)
Description
High energy absorption per hour
Deceleration characteristics: Self-compensating, adjustable
Extended Life Time: Piston rod: hardened / hard chrome-plated
Housing: zinc plated
Temperatur range: - 20° - + 80° C
End stop: Required 2 – 3 mm before the stroke ends
Optional: Lower or higher impact speed
Optional: Lower or higher temperatures
