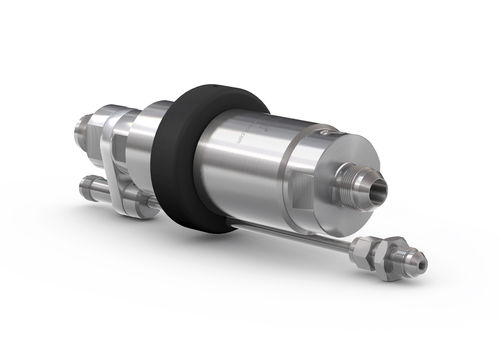

In-line breakaway coupling TSA6 CNG

for CNGfor truck fueling stationsfor bus fueling stations

WEH® Inline Breakaway Coupling TSA6 CNG bus / truck, with gas recirculation UNF 7/16"-20 external thread, inlet UNF 7/8"-14 external thread, 200 bar With TSA6 CNG, an inline breakaway coupling which is installed inbetween the filling hoses, is now also available for bus and truck fuelling stations Connection port venting line (dispenser side): UNF 7/16“-20 external thread Connection port filling line (dispenser side): UNF 7/8“-14 external thread Connection port filling line (to nozzle): UNF 7/8“-14 external thread Connection port venting line (to nozzle): UNF 7/16“-20 external thread The breakaway device consists of a coupling body, a receptacle insert and a gas recirculation.
