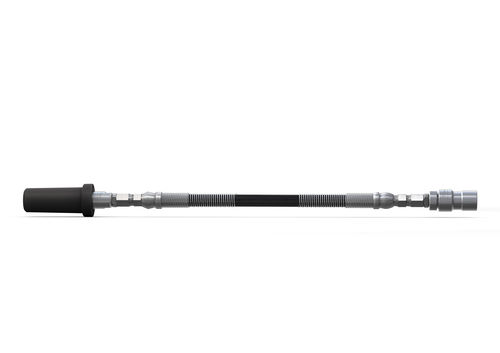

Natural gas nozzle TK4-TN5 CNG

for fast fuelingfor single hose systemsrefueling

- Push-Pull actuation - Plastic thermal protection - WEH® Jaw Locking Mechanism - Integrated shut-off valve - High-grade materials WEH® Adaptor Nozzle TK4-TN5 CNG for cars with NGV1 receptacle profile / ISO 14469 at bus and truck fuelling stations, 200 barA suitable filling station is not always within immediate reach. WEH offers suitable adaptor nozzles to allow buses and trucks to refuel at car filling stations and to allow cars to refuel at bus and truck filling stations. To refuel cars with the NGV1 standard / ISO 14469 at bus filling stations, WEH has developed the TK4-TN5 CNG adaptor nozzle. The TK4-TN5 CNG adaptor nozzle consists of the TK4 CNG fuelling nozzle, the TN5 CNG receptacle and a filling hose that is installed between the fuelling nozzle and the receptacle. The TK4 CNG fuelling nozzle is pushed onto the receptacle of the car. The pressure-tight connection is established. To refuel the vehicle, the fuelling nozzle of the dispenser is then connected to the TN5 CNG receptacle.
