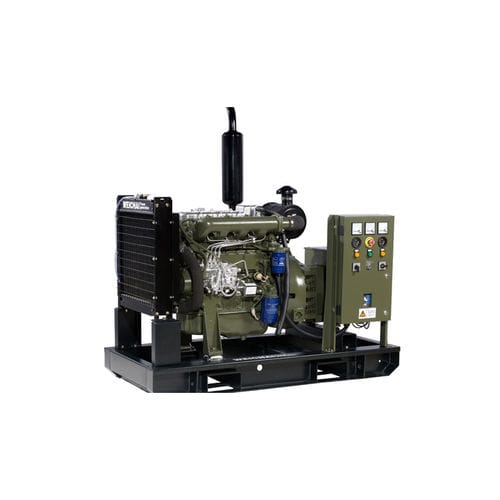

Diesel generator set YZ series
three-phasestationary50 Hz

diesel generator set
diesel generator set
Add to favorites
Compare this product


Characteristics

Motor type
diesel
Phase
three-phase
Portability
stationary
Frequency
50 Hz
Fuel System
direct fuel injection
Cooling system
water-cooled
Applications
industrial, for construction sites, for telecom applications
Options and accessories
soundproofed
Rotational speed

1,500 rpm (9,425 rad.min-1)

Power in kVA

12 kW (16.32 hp)

Sound level

80 dB

Description

Widely used in telecommunications, oil, public buildings, community, industrial and mining enterprises, hotels, hospitals, military and other fields. 1, low noise, the noise level can reach 80dB (A) @ 1m or less; 2, power reserve, and has good technical performance indicators; 3, DC12V electrical system; 4, high temperatures and rotating parts complete protection; 5, high-performance shock absorbers and 40 ℃ hot tank; 6, spray Public chassis; Rated power: 12kW; Rated voltage: 400V; Rated speed / rated frequency: 1500rpm/50Hz; Rated power factor: 0.8 (lagging); Rated current: 21.65A Number of cylinders / Bore / Stroke: 4/85mm/92mm; Displacement: 2.088L; Cooling: Closed radiator fan forced cooling;
