Dry washing machine Trio® BM series

dry washing machine
dry washing machine
dry washing machine
Add to favorites
Compare this product


dry, spray
Operational mode

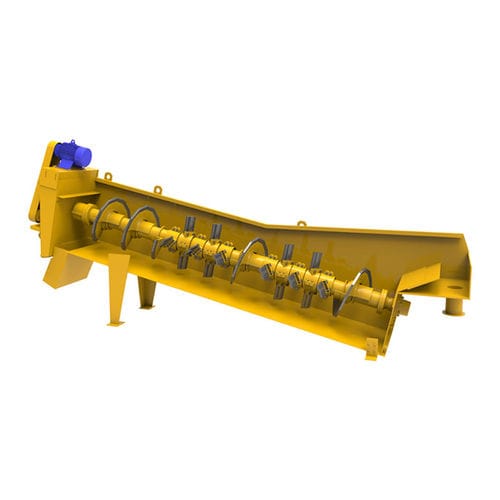

Our Trio® BM Series Blademills are used to pre-condition material that is a combination of aggregates and fine sand sizes. Overview Our Trio® BM Series Blademills have a nominal feed size of 2-1/2” x 0”. Blademills are normally used prior to a wet washing and screening process and operate at 0 to 4 degrees inclination. All water and material is discharged together at the head end. The amount of water used in a blademill can be 25% to 30% less than the amount used in a coarse washer. The capacity and effectiveness of a blademill is a function of retention time. Key features/benefits Gear reducers are capable of high reduction ratios to achieve low spiral speeds and high torque outputs A head-end shaft to gearbox coupling insures proper shaft alignment A flexible spider coupling protects the rotating shaft from thrust loads and gear reducer against vibrations Lower end shaft coupling insures precise alignment and an easy method for removing the shaft for maintenance Applications Wet pre-condition by abrading granular materials > 65mm x 0mm Applicable in Aggregate processing, Mining and Industrial Minerals beneficiation processes Processes Classification and Separation (Mining) Materials Handling (Mining) Materials Handling (Aggregates) Classification and Separation (Aggregates)


No catalogs are available for this product.

See all of Weir Minerals‘s catalogs
