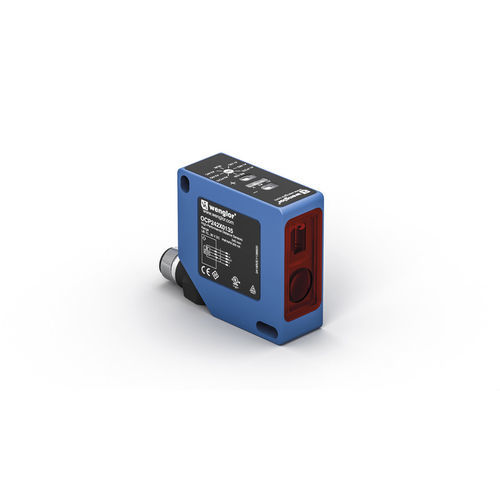

Laser distance sensor CP24MHT80 analogM12 connectorIP67
Add to favorites
Compare this product
Characteristics
- Technology
- laser
- Output
- analog
- Electrical connection
- M12 connector
- Protection level
- IP67
- Range
Min.: 40 mm
(2 in)Max.: 160 mm
(6 in)
Description
These sensors work with a high-resolution CMOS line and DSP technology and determine distance using angular measurement. As a result, material, color and brightness related measurement differences are virtually eliminated. Integrated analogue output can be configured for voltage 0...10 V (10...0 V) or current 4...20 mA (20...4 mA).
Features at a Glance
Response time: < 660 µs (speed-mode)
High resolution: 20 µm (resolution-mode)
Linearity: 0,1 % (resolution-mode)
Zoom function
Measured value independent of material, color and brightness
