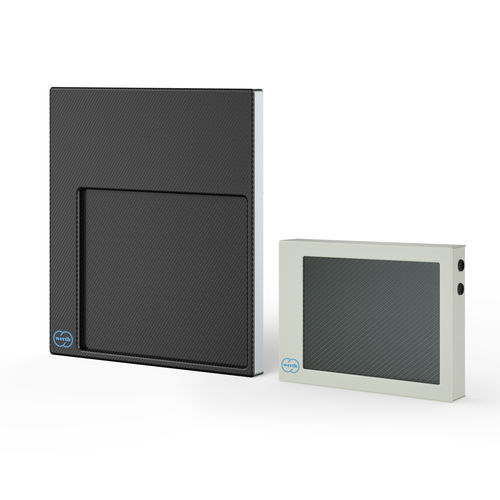

Energy-efficient measurement with area sensors According to requirements, various area sensors can be used in Werth coordinate measuring machines with X-ray computed tomography. These differ, among other things, in their design, dimensions, pixel size and number, and speed. A modular device design allows optimum adaptation to the respective requirements. • Different sizes from 50 mm up to 430 mm edge length result in different "in the image" and "on the image" measuring ranges • The number of pixels per detector line varies between 1000 pixels and 6000 pixels, the total number of pixels ranges from one to 36 megapixels. The resolution can thus be optimally adapted to the size of the workpiece and the required metrological resolution. • By binning, detectors with many pixels can be used for faster measurement with less data • The fastest detectors have exposure times of a few milliseconds and offer high measuring speeds in combination with powerful tubes and OnTheFly CT • With pixel sizes down to 50 µm, even the smallest structures can be resolved • The area detectors can also be operated in line sensor mode under software control • Depending on the type, they can be used for acceleration voltages between 130 kV and 450 kV Pixel sizes between 50 µm and 400 µm Integration times up to 15 milliseconds Sensor surfaces from 50 mm x 50 mm to 430 mm x 430 mm
