3D touch probe SP80

measurementscanningfor crankshafts

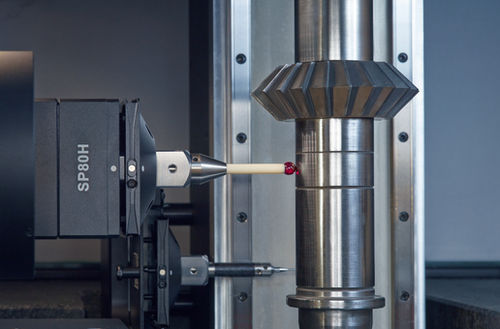

The SP80 is a measuring tactile sensor that impresses with the highest precision at high scanning speeds. The high-resolution tactile probing system is fully integrated into the Werth multi-sensor concept. The application focus of the 3D scanning probe is on 3D measurements that require high accuracy or the use of long and heavy stylus configurations. • Fast and repeatable change of the probe system without time-consuming qualification • Optional quick stylus change (SH80) by using the storage modules (SCP80) on the modular changing rack (MRS) • Quick changeover between the PH10 motorised rotary/tilt head and the SP80 is possible via various mounting kits Accuracy Permissible probing error up to 0.6 µm Functionality On contact with the workpiece, the stylus is brought to the target deflection using the coordinate axes. Using a triangulation process, the exact deflection is measured, superimposed on the coordinates of the machine's scale systems and stored as a measurement point.
