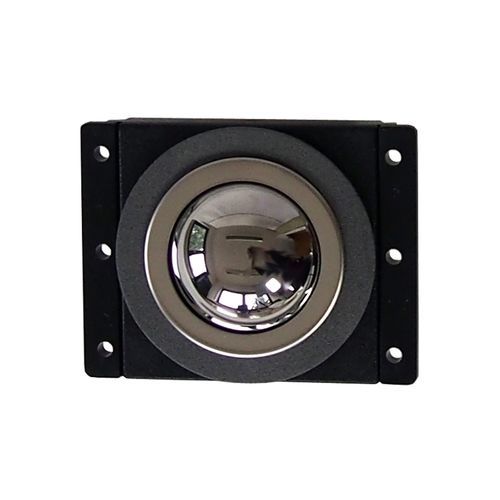

Mechanical trackball TBPM-38S-M-P65-UP-EU

panel-mount38 mmUSB

Industrial built-in trackball with 38 mm stainless steel ball for bottom mounting with a variably installable mounting frame. The built-in trackball operates with mechanical tracking and is front-side IP65 sealed. Up to 3 external buttons can be connected. Features Bottom mounting Variably installable mounting frame Up to 3 external buttons can be connected Applications Industrial machines, kiosk information systems, self-service and info terminals, medical devices, production machinery or devices in aerospace, retail, exhibitions, or museums Technical Data Construction: Plastic housing with six 4 mm mounting holes Dimensions: 74.5 x 57.2 x 40 mm (W x H x D) mounting depth Trackball material: Stainless steel ball with protective ring Operating principle: Mechanical tracking Connection options: Up to 3 external buttons Power supply: 5 VDC Connection plug: 10-pin JST Button connection cable: 4-pin JST
