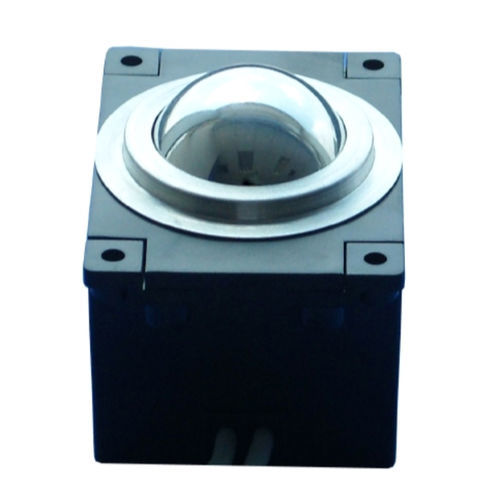

Optical trackball TBPM-38S-O-P65-U

panel-mount38 mmUSB

Industrial built-in trackball with 38mm stainless steel ball for bottom mounting. The built-in trackball uses optical tracking with a resolution of 800 dpi. It is sealed to IP65 (static) / IP54 (dynamic). Up to 3 external buttons can be connected. Special Features Bottom mounting Up to 3 external buttons possible Applications Industrial machines, kiosk information systems, self-service and info terminals, medical devices, production machinery, or devices in aerospace, retail, exhibitions, or museums Technical Data Construction: Plastic housing with four 4 mm mounting holes Dimensions: 74.0 x 54.0 x 40.8 mm (W x H x D) mounting depth Trackball material: Stainless steel ball with protective ring Connection options: For up to 3 external buttons Power supply: 5 V DC Button connection cable: 4-pin JST Certifications: RoHS, CE
