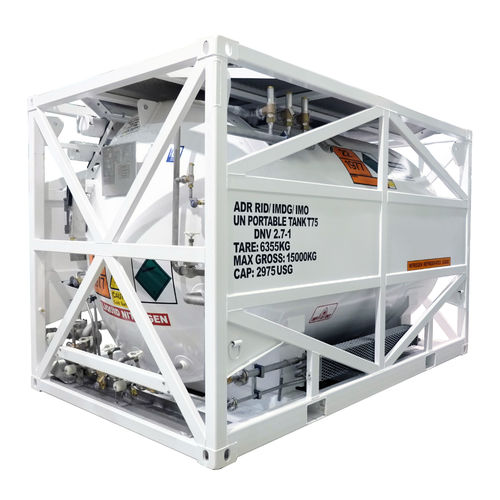

Cryogenic tank CRYO PACK 3000

nitrogenfor liquified gasoxygen

The CRYO PACK 3000 tank has approvals for road, rail and sea transport. It also has DNV 2.7-1/EN 12079 approval and is used for nitrogen service on oil production platforms throughout the world. This T75 UN Portable tank is designed and manufactured in accordance with DNV 2.7-1 and EN 12079. The tank can be produced with working pressures ranging from 3 to 17 Bar and can be used for the transport of liquid nitrogen, with options for oxygen and argon service. The CRYO PACK also features high vacuum super-insulation, and is supplied with a full set of decls (including logos where supplied by customer), integral pressure building system, document holder and various pipe work and valve options to offer maximum versatility to end user and operator. A CO2 format tank can also be supplied on special request. Higher pressure versions also available on request. Special Features - Lower roof plates to allow stacking with slings / shackles remaining in situ - Dual try-cock valves - Optional Hastings vacuum check valve
