Storage tank ISO VAC 20 - CO2

transportnitrogenfor liquified gas

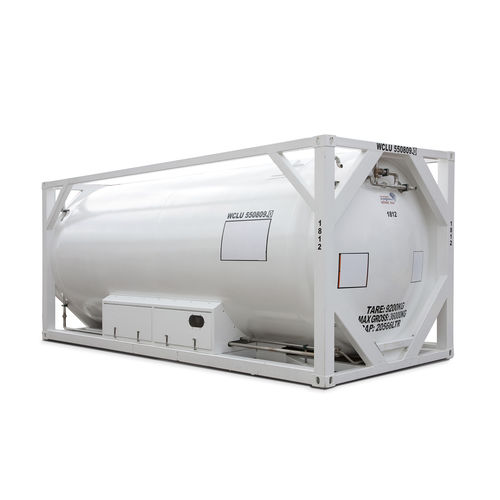

The ISO VAC 20-CO2 tank has been designed as a standard 20ft ISO container for the safe storage and transport of CO2. A new frame arrangement with Blair corner castings, & lockable valve protection cabinet, containing the valves, gauges, vacuum check gauge connection and a separate document holder. The ISO VAC 20 CO2 tank can be produced with working pressures ranging from 17 to 24 Bar and can be used for the transport of CO2. Other tank options include liquid nitrogen, argon, oxygen, LNG, Ethylene & Ethane. This tank has approvals for road, rail and sea transport This tank can also be configured to accept cryogenic transfer pumps. The ISO VAC 20-CO2 also features high vacuum super-insulation, stacking capability 9 units high to ISO 1496-3 (192,000 kg max), full set of decals (including logo’s where supplied by customer), integral pressure building system, document holder and various pipe work and valve options to offer maximum versatility to end user and operator.
