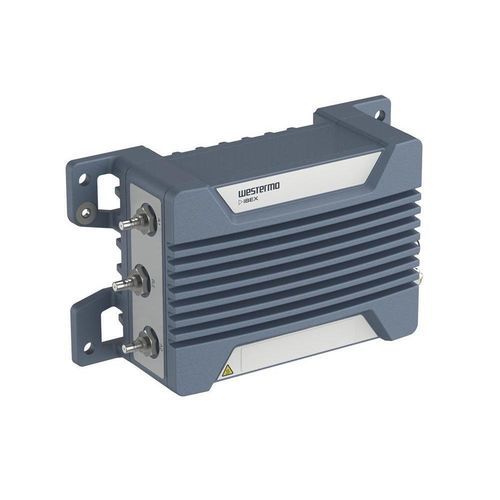

Dual-band access point Ibex-1520 series

WLANMIMOBluetooth

Product Summary
The Ibex-1520 is a concurrent dual‑band 802.11be (Wi‑Fi 7) access point designed for onboard rail and stationary installations. It supports 2x2 MU‑MIMO, Multi‑Link Operation (MLO) up to 160 MHz and 4096‑QAM modulation to deliver high throughput for passenger services, remote maintenance and TCMS integration.

Key Features

• Dual‑band Wi‑Fi 7 (802.11be): concurrent 2.4 GHz and 5 GHz
• Multi‑Link Operation (MLO) for increased throughput and reliability
• Supports up to 512 clients per radio; 2x2 MU‑MIMO
• 4096‑QAM (4K‑QAM) modulation; BLE support

Designed for Onboard Rail Usage

• Certified for onboard rail: EN 50155 and EN 45545‑2
• Compact metal housing with M12 connectors and quick‑connect QMA support
• IP66 protection; operating temperature −40°C to +70°C
• Engineered to resist vibration, humidity and EMI; GORE‑TEX® membrane to prevent condensation

Advanced Security & Safety Features

• Cybersecurity: WPA2/WPA3, 802.1X with RadSec, persistent security logs
• OpenRoaming certified and Passpoint 2.0 ready
• High interface isolation, surge protection and regular security updates via IbexOS

Technical specifications

• Model: Ibex-1520
• Standard: Wi‑Fi 7 (802.11be)
• Radio: Concurrent dual‑band 2.4 GHz and 5 GHz
• MIMO: 2x2 MU‑MIMO
• MLO: Multi‑Link Operation, up to 160 MHz
• Modulation: 4096‑QAM (4K‑QAM)
• Client capacity: Up to 512 clients per radio
• Ethernet: 2 × 2.5 Gbps ports (M12)
• Power: 24–110 VDC or PoE / PoE+
• Environmental: IP66; −40°C to +70°C
• Ruggedization: Vibration, humidity and EMI resistant; high isolation and surge protection; GORE‑TEX® membrane
• Security: WPA2, WPA3, 802.1X (RadSec), OpenRoaming, Passpoint 2.0
• Additional: BLE, airtime fairness, band steering, client & multi‑AP steering

Applications

• Onboard passenger hotspot
• Remote maintenance and secure remote access
• Data offloading and onboard services
• Integration into Train Control and Management Systems (TCMS)
