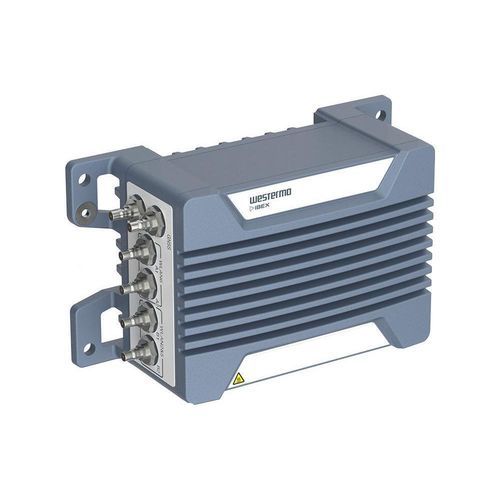

GNSS access point Ibex-3520 series

BluetoothWiFiIP

Features
Next-Gen Wireless Technology

• Tri-band Wi-Fi 7 (802.11be), concurrent 2.4 GHz, 5 GHz and 6 GHz operation
• Multi-Link Operation (MLO) for higher throughput; bandwidth support up to 320 MHz
• Supports up to 512 clients per radio; 2x2 MU-MIMO; BLE; GNSS; 4096-QAM modulation

Designed for Onboard Rail Usage

• Certified for onboard rail: EN 50155 (electrical safety), EN 45545-2 (fire protection)
• Compact metal housing with M12 connectors
• IP66 protection; operating range -40°C to +70°C
• Built to withstand vibration, humidity, and electromagnetic interference; high isolation between interfaces; GORE-TEX® membrane to prevent condensation

Advanced Security & Safety Features

• Cybersecurity: WPA2/WPA3, 802.1X with RadSec, persistent security logs
• OpenRoaming certified and Passpoint 2.0 ready
• High isolation, surge protection, GORE-TEX® membrane for condensation prevention

Product Summary
The Ibex-3520 is a concurrent triple-band 802.11be Wi-Fi 7 access point for onboard rail and stationary applications. It supports 2x2 MU-MIMO, Multi-Link Operation (MLO), band steering, client and multi-AP steering, and 4K-QAM modulation, delivering reliable, efficient high-speed data transfers suitable for passenger hotspot applications, remote maintenance access, data offloading, or integration into a Train Control and Management System (TCMS) network.

Rugged Design for Rail Environments
The Ibex family is engineered to withstand the tough environment onboard trains, including constant vibration, extreme temperatures, humidity, and demanding electromagnetic conditions. The device features a compact metal form factor, very high MTBF, IP66 protection, high interface isolation allowing direct connectivity to vehicle auxiliary power, surge protection, and a GORE-TEX® membrane to prevent internal condensation.

Compliance and Security
The Ibex-3520 undergoes independent type testing to ensure compliance with standards including EN 50155. Powered by IbexOS, it incorporates advanced cybersecurity features and receives regular cybersecurity updates.

Technical specifications

• Model: Ibex-3520
• Radio: Wi-Fi 7 (802.11be), tri-band concurrent 2.4 GHz, 5 GHz and 6 GHz
• Multi-Link Operation (MLO) with bandwidth support up to 320 MHz
• Modulation: up to 4096-QAM (4K-QAM)
• Clients supported: up to 512 clients per radio
• MU-MIMO: 2x2
• Ethernet: 2 x 2.5 Gbps ports; M12 connectors
• Power: 24–110 VDC or PoE / PoE+
• Environmental: IP66 ingress protection; operating temperature -40°C to +70°C
• Certifications / Standards: EN 50155, EN 45545-2
• Security: WPA2 / WPA3, 802.1X with RadSec, persistent security logs; OpenRoaming certified; Passpoint 2.0 ready
• Physical / Mechanical: compact metal housing; designed to withstand vibration, humidity and electromagnetic interference; very high isolation between interfaces; surge protection; GORE-TEX® membrane to minimise internal condensation
• Additional features: BLE, GNSS, band steering, client and multi-AP steering, high MTBF for space restricted installations
