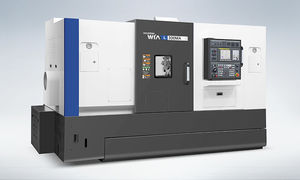

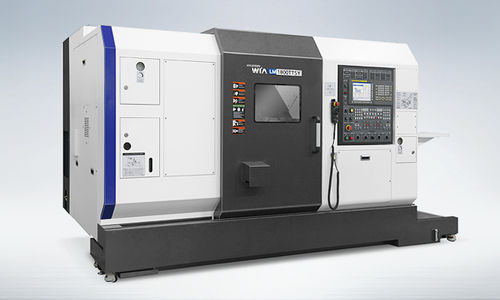

CNC turning center LM1800TT series3-axismulti-axis12 tools
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 3-axis, multi-axis
- Number of tool stations
- 12 tools
- Other characteristics
- high-precision, high-productivity, high-rigidity
- Diameter
230 mm
(9.06 in)- Spindle speed
5,000 rpm
(31,415.927 rad.min-1)- Maximum part length
673 mm
(26 in)- Axe X
165 mm, 195 mm
(6 in, 8 in)- Axe Z
668 mm, 700 mm, 720 mm
(26 in, 28 in, 28 in)- Rapids on X
20,000 mm/min
(13 in/s)- Rapids on Z
40,000 mm/min
(26 in/s)- Nominal power
11 kW, 22 kW
(15 hp, 29.9 hp)- Maximum torque
118 Nm, 358 Nm
(87 ft.lb, 264 ft.lb)
Description
Large output built-In spindle motor
Highly sturdy BMT turret adopted
Combined processing possible by the addition of Y axis to the upper turret (TTSY specifications)
Specific cutting time reduced due to synchronous rotation control of the opposite-type main spindle
Design of the hybrid-type feed shaft combining box guide and roller guide
