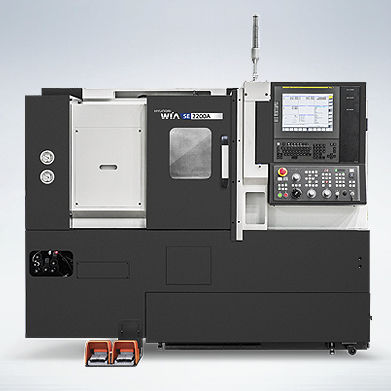

CNC turning center SE2200 series2-axis12 toolsbelt drive
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Number of tool stations
- 12 tools
- Drive system
- belt drive
- Other characteristics
- high-productivity, high-performance, with turret, high-rigidity, compact
- Diameter
300 mm, 350 mm
(11.81 in, 13.78 in)- Spindle speed
6,000 rpm
(37,699.112 rad.min-1)- Maximum part length
309 mm, 340 mm, 529 mm, 560 mm
(12 in, 13 in, 21 in, 22 in)- Axe X
210 mm
(8 in)- Axe Z
340 mm, 560 mm
(13 in, 22 in)- Rapids on X
30,000 mm/min
(20 in/s)- Rapids on Z
36,000 mm/min
(24 in/s)- Nominal power
11 kW, 15 kW
(15 hp, 20.4 hp)- Maximum torque
70 Nm, 127 Nm
(52 ft.lb, 94 ft.lb)
Description
30° slanted one-piece bed structure with high rigidity
Improved user convenience by applying the latest controller of FANUC
Prepared user-oriented lineup including long-bed, mill turret and sub-spindle
Compact structure with internal-motor design (for standard-type bed)
Ergonomic design for convenient access to chuck and tool
VIDEO
Catalogs
No catalogs are available for this product.
See all of WIA‘s catalogs
