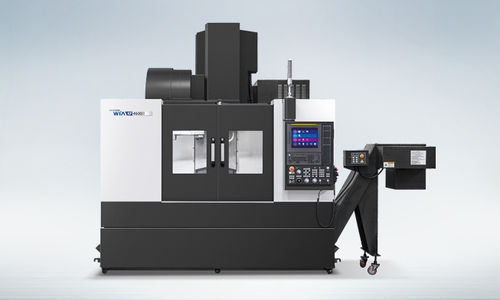

3-axis CNC machining center KF4600 II(15k-OPT)
verticalHSK A-6330 tools

3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Spindle mount
HSK A-63
Number of tool stations
30 tools
Other characteristics
high-speed, high-productivity, direct-drive, high-precision
X travel

900 mm
(35 in)

Y travel

460 mm
(18 in)

Z travel

520 mm
(20 in)

Rotational speed

15,000 rpm
(94,248 rad.min-1)

Power

11 kW, 18.5 kW
(14.96 hp, 25.15 hp)

Work feed X-axis

36,000 mm/min
(24 in/s)

Work feed Y-axis

36,000 mm/min
(24 in/s)

Work feed Z-axis

30,000 mm/min
(20 in/s)

Table load capacity

600 kg
(1,323 lb)

Tool-changing time

3.2 s

Description

Designed with advanced technology, Hyundai WIA’s Fast & Versatile Machining Center maximizes productivity Enhanced chip disposal capabilities by applying the upper-type conveyor Various motors and columns provided for customized machining Improved user convenience by applying the latest controller of FANUC
